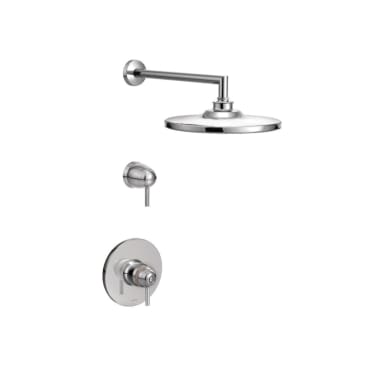

MOEN TS33001 Image 1

ARRIS EXACT TEMP SHOWER ONLY TRIM CHR MOEN TS33001

MFR Part #: TS33001
SKU #: 1162096
Brand: Moen®
UPC: 026508242575
Moen® TS33001 Shower Trim Only, 2.5 gpm Shower, Polished Chrome
10 in Showerhead, Arm and Flange
ADA Compliant | ASME A112.18.1 | CSA B125.1 | ASSE1016

Moen® Shower Trim Only, Series: TS33001, Arris™ Collection, 2.5 gpm Shower Flow Rate, 2 Handles, Lever Handle, 7 in Dia Trim, Thermostatic Ceramic Cartridge, Hand Shower: No, Spray Pattern: Rain, 80 psi Pressure, 70 to 120 deg F, Wall Mounting, For Use With: ExactTemp® S3371 3/4 in IPS Thermostatic Valve and S3600 3/4 in IPS Volume Control Valve, Metal, Polished Chrome, Import

Product Details

Moen® Shower Trim Only, Series: TS33001, Arris™ Collection, 2.5 gpm Shower Flow Rate, 2 Handles, Lever Handle, 7 in Dia Trim, Thermostatic Ceramic Cartridge, Hand Shower: No, Spray Pattern: Rain, 80 psi Pressure, 70 to 120 deg F, Wall Mounting, For Use With: ExactTemp® S3371 3/4 in IPS Thermostatic Valve and S3600 3/4 in IPS Volume Control Valve, Metal, Polished Chrome, Import

Attributes

Collection: Arris™
Domestic/Import: Import
Finish/Color: Polished Chrome
Hand Shower Yes/No: No
Handle Type: Lever
Material: Metal
Mounting Type: Wall
Number of Handles: 2
Pressure Rating: 80 psi
Shower Flow Rate: 2.5 gpm
Spray Pattern: Rain
Temperature Rating: 70 to 120 deg F
Trim Size: 7 in Dia
Valve/Cartridge Type: Thermostatic Ceramic Cartridge

Features

  • Flow lever operates counterclockwise through a 90 deg arc with shut-off at 6 o'clock and maximum flow at the 3 o'clock position
  • Shut off in clockwise direction
  • Temperature lever operates through a 340 deg arc with maximum cold at full clockwise rotation and maximum hot at full counter clockwise rotation
  • Safety stop preset temperature at 105 deg F
  • Safety stop override allows maximum temperature at 120 deg F
  • Without valve

Resources

Specification Sheet
