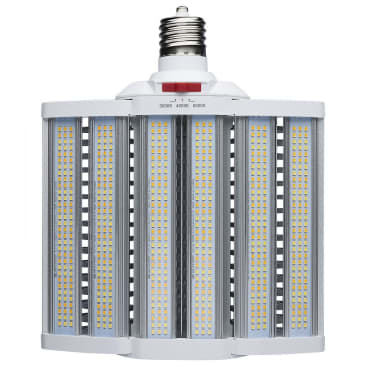

SATCO S28938R1 Image 1

SATCO S28938R1 90/100/110W 120-277B 3K/4K/5K CCT SELECTABLE LED SHOE BOX LAMP WHITE FINISH

MFR Part #: S28938R1
SKU #: 1269341
Brand: SATCO®
UPC: 400051238610
SATCO® S28938R1 Retrofit Fixture, 90/100/110 W, 750 W Incandescent Equivalent, EX39 Lamp, 13500/14500/15400 Lumens
5 Years Limited
This product may be subject to ecological fees.
Lighting
cULus Certified|cULus Classified|cULus Listed

SATCO®, S28938R1, Retrofit Fixture, 110W/LED/HID/SB/3CCT/EX39 Designation, 90/100/110 W Wattage, 750 W Incandescent Equivalent, 120 to 277 V, 0.750 to 0.325/0.833 to 0.361/0.917 to 0.397 A, EX39 Lamp Base, 13500/14500/15400 Lumens, 50000 hr Average Life, Soft White to Natural Light, 80 CRI, 3000/4000/5000 K Color Temperature, Dimmable Ballast, Enclosed Fixture, Spread Beam, 180 deg Beam, 8.9 in Dia x 11.26 in L Dimensions

SATCO NUVO's LED Hi-Pro Lamps offer a 320 degree rotating EX39 base making the installation of these lamps easier than ever. The two different on-unit CCT and Wattage Selectable switches give the user the power to customize the lighting for each unique environment. The notable design of the expandable light panels, when used in its fully open operating position, provides a 180 degree beam angle that enables the user to focus the light distribution exactly where it is needed the most. The outstanding heat dissipation, the ballast bypass feature, and the integrated 4kV surge protection make these the perfect HID replacement for shoebox fixtures and commercial area lighting. An optional 10kV hardwire surge protector is available to provide an additional level of protection when needed.|SATCO NUVO's S28938R1 LED Hi-Pro Lamp offers a 320 degree rotating EX39 base making the installation of this lamp easier than ever. The two different on-unit CCT and Wattage Selectable switches give the user the power to customize the lighting for each unique environment. The notable design of the expandable light panels, when used in its fully open operating position, provides a 180 degree beam angle that enables the user to focus the light distribution exactly where it is needed the most. The outstanding heat dissipation, the ballast bypass feature, and the integrated 4kV surge protection make this lamp the perfect HID replacement for shoebox fixtures and commercial area lighting. An optional 10kV hardwire surge protector is available to provide an additional level of protection when needed.

Product Details

SATCO®, S28938R1, Retrofit Fixture, 110W/LED/HID/SB/3CCT/EX39 Designation, 90/100/110 W Wattage, 750 W Incandescent Equivalent, 120 to 277 V, 0.750 to 0.325/0.833 to 0.361/0.917 to 0.397 A, EX39 Lamp Base, 13500/14500/15400 Lumens, 50000 hr Average Life, Soft White to Natural Light, 80 CRI, 3000/4000/5000 K Color Temperature, Dimmable Ballast, Enclosed Fixture, Spread Beam, 180 deg Beam, 8.9 in Dia x 11.26 in L Dimensions

SATCO NUVO's LED Hi-Pro Lamps offer a 320 degree rotating EX39 base making the installation of these lamps easier than ever. The two different on-unit CCT and Wattage Selectable switches give the user the power to customize the lighting for each unique environment. The notable design of the expandable light panels, when used in its fully open operating position, provides a 180 degree beam angle that enables the user to focus the light distribution exactly where it is needed the most. The outstanding heat dissipation, the ballast bypass feature, and the integrated 4kV surge protection make these the perfect HID replacement for shoebox fixtures and commercial area lighting. An optional 10kV hardwire surge protector is available to provide an additional level of protection when needed.|SATCO NUVO's S28938R1 LED Hi-Pro Lamp offers a 320 degree rotating EX39 base making the installation of this lamp easier than ever. The two different on-unit CCT and Wattage Selectable switches give the user the power to customize the lighting for each unique environment. The notable design of the expandable light panels, when used in its fully open operating position, provides a 180 degree beam angle that enables the user to focus the light distribution exactly where it is needed the most. The outstanding heat dissipation, the ballast bypass feature, and the integrated 4kV surge protection make this lamp the perfect HID replacement for shoebox fixtures and commercial area lighting. An optional 10kV hardwire surge protector is available to provide an additional level of protection when needed.

Attributes

Ballast TypeDimmable
Color Temperature3000/4000/5000 K
Lamp Base TypeEX39
Wattage90/100/110 W
Amperage Rating0.750 to 0.325/0.833 to 0.361/0.917 to 0.397 A
Average Life50000 hr
Beam Angle180 deg
Beam TypeSpread
ColorSoft White to Natural Light
Color Rendering Index (CRI)80
Designation110W/LED/HID/SB/3CCT/EX39
Dimensions8.9 in Dia x 11.26 in L
Fixture TypeEnclosed
Incandescent Equivalent750 W
Lamp FinishWhite
Lumens13500/14500/15400 Lumens
Voltage Rating120 to 277 V

Features

  • CCT and Wattage Selectable
  • Expandable Light Panels
  • Integrated 4kV Surge Protection
  • Advanced Heat Dissipation
  • Type B Ballast Bypass
