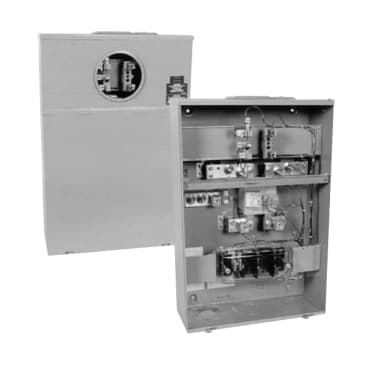

HYDEL CT4-NS7 400A 1-GANG OVERHEAD/UNDERGROUND METER SOCKET WITH 750MCM LUG
MFR Part #: CT4-NS7
SKU #: 1302443
Brand: Hydel
UPC: 400052248281
Hydel CT4-NS7 Overhead/Underground Meter Socket, 120/240 V AC, 400 A, 1 Phase
CSA Certified
Product Details
Attributes
Features
Resources
Hydel Meter Socket, Overhead/Underground, Series: CT4 Series, 120/240 V AC, 400 A, 1 ph, 4 Jaws, 500 kcmil Line Side, 4 AWG to 600 kcmil Load Side Wire, 36 in H x 20 in W x 8 in D Dimensions
Amperage Rating:400 A
Dimensions:36 in H x 20 in W x 8 in D
Number of Jaws:4
Phase:1
Series:CT4 Series
Type:Overhead/Underground
Voltage Rating:120/240 V AC
Wire Size:500 kcmil Line Side, 4 AWG to 600 kcmil Load Side
- Tunnel lug kit supplied for overhead service LK250, LK500 and LK750 upon request
- Line side double 1/2 in studs to accommodate compression lugs for underground service (1 x 500 kcmil or 2 x 250 kcmil) load side one 4 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil tunnel type connectors
- Neutral - 1/2 in studs to accept two 500 kcmil compression type lugs - lugs, one 4 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil
Product Details
Hydel Meter Socket, Overhead/Underground, Series: CT4 Series, 120/240 V AC, 400 A, 1 ph, 4 Jaws, 500 kcmil Line Side, 4 AWG to 600 kcmil Load Side Wire, 36 in H x 20 in W x 8 in D Dimensions
Attributes
Amperage Rating: 400 A
Dimensions: 36 in H x 20 in W x 8 in D
Number of Jaws: 4
Phase: 1
Series: CT4 Series
Type: Overhead/Underground
Voltage Rating: 120/240 V AC
Wire Size: 500 kcmil Line Side, 4 AWG to 600 kcmil Load Side
Features
- Tunnel lug kit supplied for overhead service LK250, LK500 and LK750 upon request
- Line side double 1/2 in studs to accommodate compression lugs for underground service (1 x 500 kcmil or 2 x 250 kcmil) load side one 4 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil tunnel type connectors
- Neutral - 1/2 in studs to accept two 500 kcmil compression type lugs - lugs, one 4 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil
