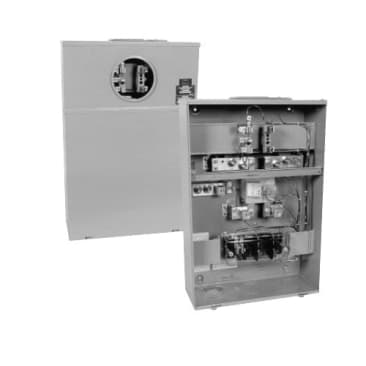

HYDEL CT4-NS 400A 1-GANG OVERHEAD/UNDERGROUND METER SOCKET
MFR Part #: CT4-NS
SKU #: 1302442
Brand: Hydel
UPC: 400052248274
Hydel CT4-NS Meter Socket, 120/240 V AC, 400 A, 1 ph Phase
CSA Certified
Product Details
Attributes
Features
Resources
Hydel Meter Socket, Series: CT4, 120/240 V AC, 400 A, 1 ph, Overhead/Underground Feed, 4 Jaws, (1) 4 AWG to 600 kcmil/(2) 1/0 AWG to 250 kcmil at Load Side Wire, 30 in H x 20 in W x 8 in D Dimensions
Amperage Rating:400 A
Dimensions:30 in H x 20 in W x 8 in D
Feed Type:Overhead/Underground
Number of Jaws:4
Series:CT4
Voltage Rating:120/240 V AC
Wire Size:(1) 4 AWG to 600 kcmil/(2) 1/0 AWG to 250 kcmil at Load Side
- Hub plate supplied for underground service
- Lug kit supplied separately for overhead service
- Line side - double 1/2 in studs to accommodate compression lugs for underground service (1 x 500 kcmil or 2 x 250 kcmil)
- CT, three wire current transformer provides low current for service metering proportional to higher current draw approved by CCA Canada
Product Details
Hydel Meter Socket, Series: CT4, 120/240 V AC, 400 A, 1 ph, Overhead/Underground Feed, 4 Jaws, (1) 4 AWG to 600 kcmil/(2) 1/0 AWG to 250 kcmil at Load Side Wire, 30 in H x 20 in W x 8 in D Dimensions
Attributes
Amperage Rating: 400 A
Dimensions: 30 in H x 20 in W x 8 in D
Feed Type: Overhead/Underground
Number of Jaws: 4
Series: CT4
Voltage Rating: 120/240 V AC
Wire Size: (1) 4 AWG to 600 kcmil/(2) 1/0 AWG to 250 kcmil at Load Side
Features
- Hub plate supplied for underground service
- Lug kit supplied separately for overhead service
- Line side - double 1/2 in studs to accommodate compression lugs for underground service (1 x 500 kcmil or 2 x 250 kcmil)
- CT, three wire current transformer provides low current for service metering proportional to higher current draw approved by CCA Canada
