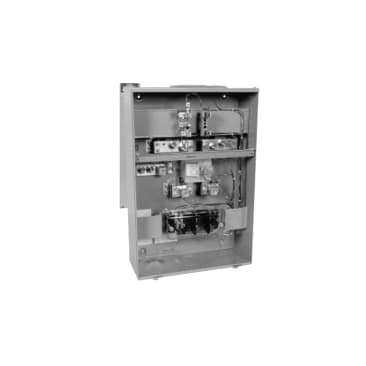

HYDEL CT4-4 Image 1

HYDEL CT4-4 400A 1-GANG OVERHEAD/UNDERGROUND 400:5CT METER SOCKET WITH BYPASS

MFR Part #: CT4-4
SKU #: 1302525
Brand: Hydel
UPC: 620757051287
Hydel CT4-4 Meter Socket, 120/240 V AC, 400 A, 1 ph Phase
CSA Certified

Hydel Meter Socket, Series: CT4, 120/240 V AC, 400 A, 1 ph, Overhead/Underground Feed, 5 Jaws, 36 in H x 20 in W x 8 in D Dimensions

Product Details

Hydel Meter Socket, Series: CT4, 120/240 V AC, 400 A, 1 ph, Overhead/Underground Feed, 5 Jaws, 36 in H x 20 in W x 8 in D Dimensions

Attributes

Amperage Rating: 400 A
Dimensions: 36 in H x 20 in W x 8 in D
Feed Type: Overhead/Underground
Number of Jaws: 5
Series: CT4
Voltage Rating: 120/240 V AC

Features

  • Hub plate supplied for underground service
  • Lug kit supplied separately for overhead service
  • Line side - double 1/2 in studs to accommodate compression lugs for underground service (1 x 500 kcmil or 2 x 250 kcmil)
  • Load side - (1) 4 AWG to 600 kcmil or (2) 1/0 AWG to 250 kcmil tunnel type connectors
  • Neutral -1/2 in studs to accept one 500 kcmil compression type lugs -lugs, (1)4 AWG to 600 kcmil or (2) 1/0 AWG to 250 kcmil
  • CT, three wire current transformer provides low current for service metering proportional to higher current draw approved by CCA Canada
  • 400:5 current ratio
