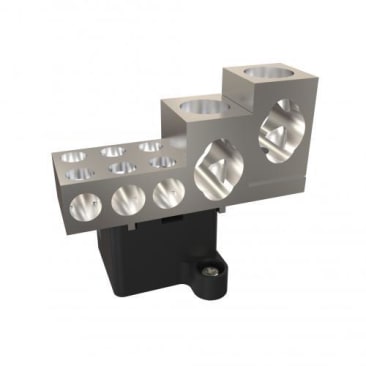

600 AMP SPLITTER BLOCKS HAMMOND CSBL600
MFR Part #: CSBL600
SKU #: 1181986
Brand: Hammond®
UPC: 62398026385
Hammond® CSBL600 Splitter Block, 600 V AC, 600 A, 4 AWG to 600 kcmil, 1/0 AWG to 250 kcmil, 14 to 3/0 AWG Wire, 6/200 A Branch Lug
1 Year
Used in Hammond® standard splitter troughs and boxes
RoHS Compliant | CSA Certified
Product Details
Attributes
Features
Resources
Hammond® Splitter Block, Series: CSBL, 600 V AC, 600 A Main Lug Amps, 4 AWG to 600 kcmil, 1/0 AWG to 250 kcmil, 14 to 3/0 AWG Wire Capacity, 6/200 A Branch Lug Amps, Aluminum/Copper Conductor, Gray
Branch Lug Amps:6/200 A
Conductor Type:Aluminum/Copper
Finish:Gray
Main Lug Amps:600 A
Series:CSBL
Voltage Rating:600 V AC
Wire Capacity:4 AWG to 600 kcmil, 1/0 AWG to 250 kcmil, 14 to 3/0 AWG
- Wall mounting
- The design includes the main and branch lugs which can use either copper or aluminum conductors
- Cu-Al monopiece connectors are secured to insulators, each block includes a main lug and branch lugs
- (2x) 4 AWG to 600 mcm or (4x) 1/0 AWG to 250 mcm main/6 x (14 to 3/0 AWG) branch
- All blocks are rated 600 VAC
Product Details
Hammond® Splitter Block, Series: CSBL, 600 V AC, 600 A Main Lug Amps, 4 AWG to 600 kcmil, 1/0 AWG to 250 kcmil, 14 to 3/0 AWG Wire Capacity, 6/200 A Branch Lug Amps, Aluminum/Copper Conductor, Gray
Attributes
Branch Lug Amps: 6/200 A
Conductor Type: Aluminum/Copper
Finish: Gray
Main Lug Amps: 600 A
Series: CSBL
Voltage Rating: 600 V AC
Wire Capacity: 4 AWG to 600 kcmil, 1/0 AWG to 250 kcmil, 14 to 3/0 AWG
Features
- Wall mounting
- The design includes the main and branch lugs which can use either copper or aluminum conductors
- Cu-Al monopiece connectors are secured to insulators, each block includes a main lug and branch lugs
- (2x) 4 AWG to 600 mcm or (4x) 1/0 AWG to 250 mcm main/6 x (14 to 3/0 AWG) branch
- All blocks are rated 600 VAC
