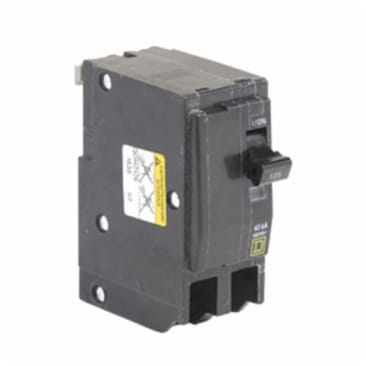

SQUARE D QO2100 PUSH-IN 2 POLE 100 AMP BREAKER
MFR Part #: QO2100
SKU #: 0715050
Brand: Square D™
UPC: 785901501305
Square D QO™ Series QO2100 Circuit Breaker, 120/240 VAC/48 VDC, 100 A, 5 kA, 10 kA Interrupt, 2 -Pole
18 Month
For QO load centers, NQOD and NQ panelboards, NQOD and NQ OEM interiors or Speed-D switchboard distribution panels
CSA Certified | HACR Rated | UL Listed
Product Details
Attributes
Features
Resources
Square D Circuit Breaker, QO™ Series, 100 A, 120/240 VAC/48 VDC, 50/60 Hz, 5 kA, 10 kA Interrupt Rating, 2 Poles, Box Lug Connection, 4 to 2 AWG Aluminum/Copper Wire, Plug-In Mounting, 40 deg C, 1-1/2 in Width, 2.91 in Length, 3-1/2 in Height
Amperage Rating:100 A
Connection Type:Box Lug
Country Of Origin:US
Frequency Rating:50/60 Hz
Height:3-1/2 in
Interrupt Rating:5 kA, 10 kA
Length:2.91 in
Mounting Type:Plug-In
Number of Poles:2
Series:QO™ Series
Temperature Rating:40 deg C
Voltage Rating:120/240 VAC/48 VDC
Width:1-1/2 in
Wire Size:4 to 2 AWG Aluminum/Copper
- Two space required
Product Details
Square D Circuit Breaker, QO™ Series, 100 A, 120/240 VAC/48 VDC, 50/60 Hz, 5 kA, 10 kA Interrupt Rating, 2 Poles, Box Lug Connection, 4 to 2 AWG Aluminum/Copper Wire, Plug-In Mounting, 40 deg C, 1-1/2 in Width, 2.91 in Length, 3-1/2 in Height
Attributes
Amperage Rating: 100 A
Connection Type: Box Lug
Country Of Origin: US
Frequency Rating: 50/60 Hz
Height: 3-1/2 in
Interrupt Rating: 5 kA, 10 kA
Length: 2.91 in
Mounting Type: Plug-In
Number of Poles: 2
Series: QO™ Series
Temperature Rating: 40 deg C
Voltage Rating: 120/240 VAC/48 VDC
Width: 1-1/2 in
Wire Size: 4 to 2 AWG Aluminum/Copper
Features
- Two space required
