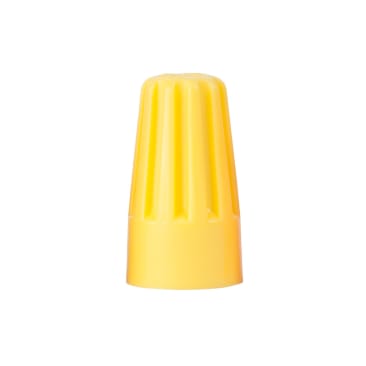

WIREGARD YELLOW GB-4 GB 10-004 (100/CRTN)
Product Details
Attributes
Features
Resources
Gardner Bender, 10-004, Twist-On Wire Connector, Threaded, Series: GB-4, Positive Grip Shell Style, Square Spring, Aluminum/Copper Wire, 18 to 10 AWG Wire, 300/600 V AC, Specifications: 15/64 in Top Dia, 105 deg C, Polypropylene Shell/Thermoplastic, Yellow, Zinc Plated, 0.4375 in ID x 0.55 in OD x 0.94 in L Dimensions
WireGard twist-on wire connectors are designed for general purpose applications requiring the connection of 2 or more copper wires.
- Industry standard twist-on connector with top quality, performance and durability
- Tight, square-wire spring makes quick, secure connections for positive continuity
- Performs in environments of extreme temperatures without failing to protect wire connection
- (1) 14 AWG, (1) 18 AWG - (3) 12 AWG wire combinations
- 100/Carton
- Designed to require fewer turns to reach required torque and meet or exceed UL pull out and dielectric test requirements
- Square wire zinc plated spring instantly adjusts to the shape and size of the splice
- Flame-retardant properties resist heat distortion up to 105 deg C/221 deg F
- High dielectric shell features deep skirt design to prevent exposure of bare wire
- Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
- Tough, thermoplastic shell shields against environmental extremes
- Copper to copper connections only
- Connectors manufactured with high temperature rated plastic and inner spring with zinc plated, square profile steel wire
- Resists chemical action from hydrocarbons, diluted acid or alkaline solutions
- Color-coded for easy size selection
