4W 20A 120/277 SWITCH BROWN LEVITON 54524-B
MFR Part #: 54524-B
SKU #: 0774372
Brand: Leviton®
UPC: 068679164515

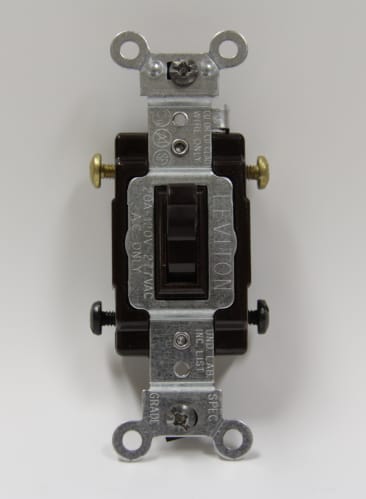

Leviton® 54524-B 4-Way Framed AC Quiet Toggle Switch, 120/277 VAC, 20 A
10 Years Limited
Commercial Applications
CSA 152105 Certified | NOM 057 | UL Federal Specification WS896 | UL E-7458 Listed | UL 94 Flammability Rating
Product Details
Attributes
Features
Resources
Leviton® AC Quiet Toggle Switch, 4-Way Framed, 120/277 VAC, 20 A, 1 hp at 120 V AC, 2 hp at 240 to 277 V AC Contact, Cam Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Brown, Environmental Conditions: -40 to 65 deg C Operating Temperature, 4.06 in H x 1.31 in W x 0.92 in D Dimensions
Actuator:Cam
Amperage Rating:20 A
Color:Brown
Contact Rating:1 hp at 120 V AC, 2 hp at 240 to 277 V AC
Dimensions:4.06 in H x 1.31 in W x 0.92 in D
Enclosure:NEMA WD-1/WD-6
Environmental Conditions:-40 to 65 deg C Operating Temperature
Material:Thermoplastic
Mounting:Surface
Operating Cycles:50000 Cycles
Terminal Type:Side Wire
Type:4-Way Framed
Voltage Rating:120/277 V AC
- Heavy duty pre-plated steel mounting strap for maximum strength
- All screws are plated steel combination head for fast installation with standard
- Phillips and robertson head screwdrivers
Product Details
Leviton® AC Quiet Toggle Switch, 4-Way Framed, 120/277 VAC, 20 A, 1 hp at 120 V AC, 2 hp at 240 to 277 V AC Contact, Cam Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Brown, Environmental Conditions: -40 to 65 deg C Operating Temperature, 4.06 in H x 1.31 in W x 0.92 in D Dimensions
Attributes
Actuator: Cam
Amperage Rating: 20 A
Color: Brown
Contact Rating: 1 hp at 120 V AC, 2 hp at 240 to 277 V AC
Dimensions: 4.06 in H x 1.31 in W x 0.92 in D
Enclosure: NEMA WD-1/WD-6
Environmental Conditions: -40 to 65 deg C Operating Temperature
Material: Thermoplastic
Mounting: Surface
Operating Cycles: 50000 Cycles
Terminal Type: Side Wire
Type: 4-Way Framed
Voltage Rating: 120/277 V AC
Features
- Heavy duty pre-plated steel mounting strap for maximum strength
- All screws are plated steel combination head for fast installation with standard
- Phillips and robertson head screwdrivers
