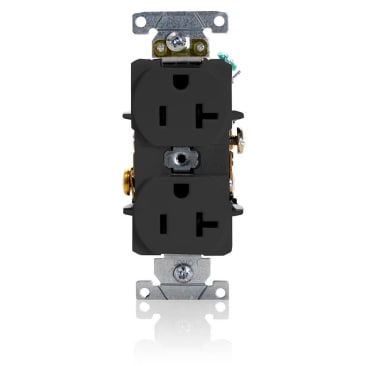

LEVITON 5362-SE Image 1

LEVITON 5362-SE 20A 125V 2-POLE 3-WIRE INDUSTRIAL DUPLEX RECEPTACLE BLACK

MFR Part #: 5362-SE
SKU #: 1292918
Brand: Leviton®
UPC: 078477205327
Leviton® 5362-SE Heavy Duty Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
2 years Limited
Commercial Applications
ANSI (C-73)|CSA C22.2 No. 42 File No. 152105|NOM Certified|UL Federal Specification WC-596 File No. E13399|UL 498 File No. E13399|UL94 Flammability Rating

Leviton®, 5362-SE, Straight Blade Duplex Receptacle, Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Black, 4.06 in H x 1.33 in W x 19 in D Dimensions

Leviton® line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractors choice for use in factories, schools, hospitals and commercial office buildings.

Product Details

Leviton®, 5362-SE, Straight Blade Duplex Receptacle, Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Black, 4.06 in H x 1.33 in W x 19 in D Dimensions

Leviton® line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractors choice for use in factories, schools, hospitals and commercial office buildings.

Attributes

Amperage Rating: 20 A
Color: Black
Dimensions: 4.06 in H x 1.33 in W x 19 in D
Material: Thermoplastic
Temperature Rating: -40 to 60 deg C
Voltage Rating: 125 VAC
Enclosure: NEMA WD-1/WD-6
Grade: Industrial
Horsepower: 1 hp
NEMA Rating: NEMA 5-20R
Number of Poles: 2
Number of Wires: 3
Terminal Type: Back/Side Wire
Type: Heavy Duty

Features

  • Impact resistant thermoplastic nylon cover and body
  • Smooth face does not collect dirt
  • Four corner latches securely fasten face
  • Large, triple-wipe, brass T contacts for superior contact and conductivity
  • Back and side wiring options
  • Brass terminal screws to reduce conductor oxidation
  • Break-off tabs for easy two-circuit conversion
  • Apron barrier to prevent accidental contact between terminal screw heads and metal box
  • Exclusive V-shaped, serrated back-wiring clamps for superior contact and conductivity
  • Wire lead receptacles for fast and easy installation
  • Wallbox mounting
  • Self-grounding
  • 1-phase
  • 2000 VAC minimum dielectric strength
  • Industrial series heavy duty specification grade
  • Steel strap
  • 14 to 10 AWG wire terminal
  • Contractor pack
