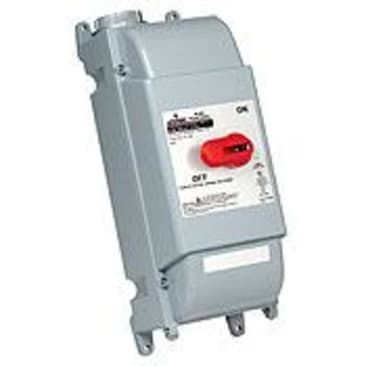

NON FUSED DISCONECT 100A 600V LEVITON DS100-AX
MFR Part #: DS100-AX
SKU #: 1159141
Brand: Leviton®
UPC: 078477127216
Powerswitch® DS100-AX Non-Fused Watertight Safety Disconnect Switch, 600 VAC, 100 A, 25 hp, 3 Poles
2 Years Limited
Valox® 357 Handle, Stainless Steel External Hardware
Industrial Applications
cULus Listed
Product Details
Attributes
Features
Resources
Powerswitch® Safety Disconnect Switch, Non-Fused Watertight, Series: DS Series, 600 VAC, 100 A, 25 hp, 3, 3 Pole, Cam Lever Actuator, NEMA 3R/4X/12K/IP67, Threaded/Feet Mount, 18.54 in H x 9.37 in W x 8.94 in D, Valox® 357, Gray
Amperage Rating:100 A
Enclosure Type:NEMA 3R/4X/12K/IP67
Actuator Type:Cam Lever
Color:Gray
Dimensions:18.54 in H x 9.37 in W x 8.94 in D
Horsepower:25 hp
Material:Valox® 357
Mounting Type:Threaded/Feet
Number of Poles:3
Phase:3
Series:DS Series
Type:Non-Fused Watertight
Voltage Rating:600 V AC
- Provides ON and OFF switched control of a directly connected load
- Meets the requirements of outdoor/indoor (IP67, Type 3R, 4X, watertight, corrosion resistant) and Indoor (Type 12K Dust tight) installations
- This enclosure provides lockout capability in compliance with OSHA lockout/tagout regulation 29 CFR Part 1910.147 (in the OFF position) with an acceptable padlock/shackle, thereby assuring the connected equipment cannot be energized
- Auxiliary contact open prior to the line contacts for pilot duty switching
Product Details
Powerswitch® Safety Disconnect Switch, Non-Fused Watertight, Series: DS Series, 600 VAC, 100 A, 25 hp, 3, 3 Pole, Cam Lever Actuator, NEMA 3R/4X/12K/IP67, Threaded/Feet Mount, 18.54 in H x 9.37 in W x 8.94 in D, Valox® 357, Gray
Attributes
Amperage Rating: 100 A
Enclosure Type: NEMA 3R/4X/12K/IP67
Actuator Type: Cam Lever
Color: Gray
Dimensions: 18.54 in H x 9.37 in W x 8.94 in D
Horsepower: 25 hp
Material: Valox® 357
Mounting Type: Threaded/Feet
Number of Poles: 3
Phase: 3
Series: DS Series
Type: Non-Fused Watertight
Voltage Rating: 600 V AC
Features
- Provides ON and OFF switched control of a directly connected load
- Meets the requirements of outdoor/indoor (IP67, Type 3R, 4X, watertight, corrosion resistant) and Indoor (Type 12K Dust tight) installations
- This enclosure provides lockout capability in compliance with OSHA lockout/tagout regulation 29 CFR Part 1910.147 (in the OFF position) with an acceptable padlock/shackle, thereby assuring the connected equipment cannot be energized
- Auxiliary contact open prior to the line contacts for pilot duty switching
