CARLON BG540SP-020 5 X 20FT BORE-GARD CONDUIT
MFR Part #: BG540SP-020
SKU #: 1021315
Brand: ABB | Carlon®
UPC: 791207351568
Carlon® Bore-Gard® BG540SP-020 Trenchless Raceway, 20 ft L, PVC, NEMA TC2
CSA Certified | RUS Accepted | UL Listed
Product Details
Attributes
Features
Resources
Carlon® Bore-Gard® Trenchless Raceway, 5 in Trade, 20 ft Length, 5 in Inside Diameter, 5.56 in Outside Diameter, NEMA Rating: NEMA TC2, PVC
Country Of Origin:US
Trade Size:5 in
Inside Diameter:5 in
Length:20 ft
Material:PVC
NEMA Rating:NEMA TC2
Outside Diameter:5.56 in
- Lower overall installed cost - simpler handling, faster assembly, lower labor cost
- Lower freight cost
- Greater internal fill capacity, bore-gard does not distort into an oval during spooling
- No wasted product
- Easier to transport, especially over rough terrain - one length of bore-gard can be carried by one person
- Strong and flexible for directional drilling applications
- Use standard PVC fittings, bore-gard is made using standard SCH 40 dimensions can be cemented
- No reel handling equipment required bore-gard can be unloaded by hand
- No fusion splicing equipment required to join two pipe sections - bore-gard is joined together by one person
- No costly reels to return with bore-gard, there are no reels to handle

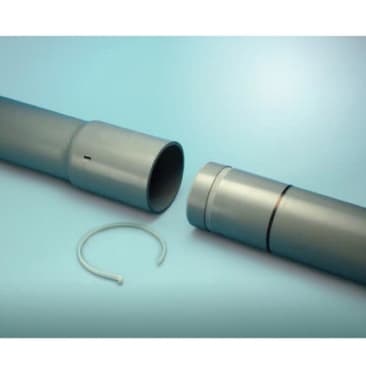

- Precision engineered design has matching grooves and nylon locking strap to provide a secure connection
- Positive stop automatically aligns strap grooves
- Triple lobed gasket designed to provide ease of assembly and a watertight seal
- Insertion depth indicator tells at a glance if pipe ends are inserted to the correct depth
- Heavy walls and deep insertion make the joint immune to the effects of normal bending
- The belled end will not snag when pulled into a bore
- Used under highways without disrupting traffic
Product Details
Carlon® Bore-Gard® Trenchless Raceway, 5 in Trade, 20 ft Length, 5 in Inside Diameter, 5.56 in Outside Diameter, NEMA Rating: NEMA TC2, PVC
Attributes
Country Of Origin: US
Trade Size: 5 in
Inside Diameter: 5 in
Length: 20 ft
Material: PVC
NEMA Rating: NEMA TC2
Outside Diameter: 5.56 in
Features
- Lower overall installed cost - simpler handling, faster assembly, lower labor cost
- Lower freight cost
- Greater internal fill capacity, bore-gard does not distort into an oval during spooling
- No wasted product
- Easier to transport, especially over rough terrain - one length of bore-gard can be carried by one person
- Strong and flexible for directional drilling applications
- Use standard PVC fittings, bore-gard is made using standard SCH 40 dimensions can be cemented
- No reel handling equipment required bore-gard can be unloaded by hand
- No fusion splicing equipment required to join two pipe sections - bore-gard is joined together by one person
- No costly reels to return with bore-gard, there are no reels to handle
- Precision engineered design has matching grooves and nylon locking strap to provide a secure connection
- Positive stop automatically aligns strap grooves
- Triple lobed gasket designed to provide ease of assembly and a watertight seal
- Insertion depth indicator tells at a glance if pipe ends are inserted to the correct depth
- Heavy walls and deep insertion make the joint immune to the effects of normal bending
- The belled end will not snag when pulled into a bore
- Used under highways without disrupting traffic
