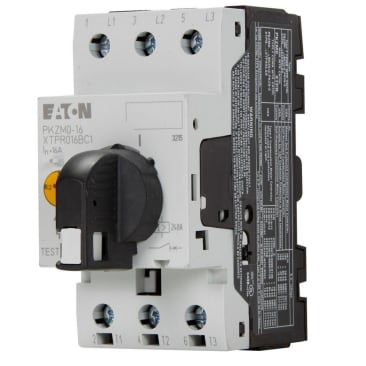

EATON XTPR016BC1 10-16A CLASS B ROTARY MMP RELAY

MFR Part #: XTPR016BC1
SKU #: 1310075
Brand: EATON
UPC: 4015082653422
EATON XTPR016BC1 B-Frame Manual Motor Protector, Rotary/ON/OFF Action, 3 Poles, IP20 Enclosure
Commercial, Institutional Buildings, Structures - Safety and Security Systems
CSA Std. C22.2,UL 508

EATON Manual Motor Protector, B-Frame, Series: XT Series, 690 V AC, 16 A, 40/60 Hz Frequency, 12.5 kW Wattage, 3 Pole, Setting: 32 A, Manual Reset, 3 ph, Screw Connection, Rotary/ON/OFF Action, Bi-Metal Overload Relay, 10 to 16 A Full Load, 1NO-1NC Auxiliary, IP20 Enclosure, -25 to 55 deg C Operating, 45 mm L x 94 mm W x 93 mm H Dimensions

Eaton’s XT line brings IEC power control to a whole new level. The XT IEC series includes non-reversing and reversing contactors and starters as well as overload relays and accessories. Enclosed control options include metallic and non-metallic enclosures with circuit breakers, and North American or European fuses. Save space and engineering design time with XT IEC series overload relays.

Product Details

EATON Manual Motor Protector, B-Frame, Series: XT Series, 690 V AC, 16 A, 40/60 Hz Frequency, 12.5 kW Wattage, 3 Pole, Setting: 32 A, Manual Reset, 3 ph, Screw Connection, Rotary/ON/OFF Action, Bi-Metal Overload Relay, 10 to 16 A Full Load, 1NO-1NC Auxiliary, IP20 Enclosure, -25 to 55 deg C Operating, 45 mm L x 94 mm W x 93 mm H Dimensions

Eaton’s XT line brings IEC power control to a whole new level. The XT IEC series includes non-reversing and reversing contactors and starters as well as overload relays and accessories. Enclosed control options include metallic and non-metallic enclosures with circuit breakers, and North American or European fuses. Save space and engineering design time with XT IEC series overload relays.

Attributes

Action: Rotary/ON/OFF
Amperage Rating: 16 A
Auxiliary Contact Rating: 1NO-1NC
Connection Type: Screw
Dimensions: 45 mm L x 94 mm W x 93 mm H
Enclosure Type: IP20
Frequency Rating: 40/60 Hz
Full Load Current: 10 to 16 A
Number of Poles: 3
Operating Temperature: -25 to 55 deg C
Overload Relay: Bi-Metal
Phase: 3
Reset Type: Manual
Series: XT Series
Setting: 32 A
Type: B-Frame
Voltage Rating: 690 V AC
Wattage: 12.5 kW

Features

  • On-Off rotary handle with lockout provision
  • Visible trip indication
  • Phase loss sensitivity
  • Identification markers standard on starter faceplate
  • Built-in heater and magnetic trip elements to protect the motor
  • 45 mm frame
  • Overload protection, trip class 10 A
