EATON XTOE100DCS Image 1

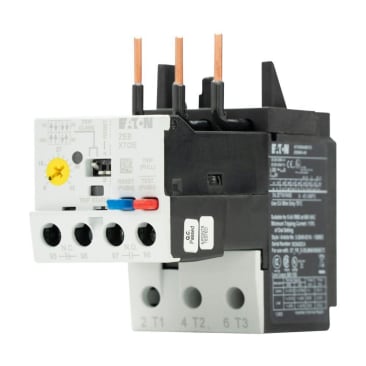

EATON XTOE100DCS 20-100A ELECTRONIC OVERLOAD RELAY 1-NORMALLY OPEN/1-NORMALLY CLOSED

MFR Part #: XTOE100DCS
SKU #: 1310069
Brand: EATON
UPC: 786685416557
EATON XTOE100DCS Electronic Overload Relay, 20/100 A, 1NO-1NC 1 Form A/1 Form B Contact, 600 VAC, 12 VDC V Coil
Contactors, Motor, Power Control Equipment, Commercial, Institutional Buildings, Structures - Other Applications
IEC 60947,CSA Certified,UL Listed,EN 60947,CE Marked,RoHS Compliant,ATEX Compliant

EATON Electronic Overload Relay, Series: XTOE, 20/100 A, 50/60 Hz Frequency, 600 VAC, 12 VDC Coil, 1NO-1NC 1 Form A/1 Form B Contact Form, 5 A at 690 VAC Contact, 3 Pole, Surface Mounting, Screw Terminal, LED Display

The C440/XTOE?electronic?overload?relay delivers enhanced motor protection and communications capabilities in a single compact device, directly monitoring motor current in each phase. Thermal modeling is performed electronically with precision solid-state components.

Product Details

EATON Electronic Overload Relay, Series: XTOE, 20/100 A, 50/60 Hz Frequency, 600 VAC, 12 VDC Coil, 1NO-1NC 1 Form A/1 Form B Contact Form, 5 A at 690 VAC Contact, 3 Pole, Surface Mounting, Screw Terminal, LED Display

The C440/XTOE?electronic?overload?relay delivers enhanced motor protection and communications capabilities in a single compact device, directly monitoring motor current in each phase. Thermal modeling is performed electronically with precision solid-state components.

Attributes

Amperage Rating: 20/100 A
Coil Voltage: 600 V AC 12 V DC
Contact Form: 1NO-1NC 1 Form A/1 Form B
Contact Rating: 5 A at 690 V AC
Display Type: LED
Frequency Rating: 50/60 Hz
Mounting Type: Surface
Number of Poles: 3
Series: XTOE
Terminal Type: Screw

Features

  • 55 mm frame
  • Selectable 10 A, class 10, 20, 30 trip
  • 20 to 100 A overload range

Resources

Specification Sheet
