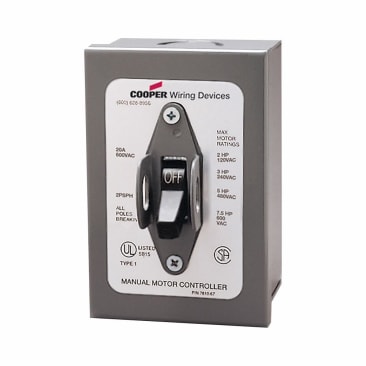

EATON AH6808GDAC IN NEMA 1 ENCLOSURE
Product Details
Attributes
Features
Resources
EATON Arrow Hart™ Eaton Wiring Devices Manual Motor Control Switch, 1-Phase, 250/600 V AC, 20 to 30 A, 2 hp, 3 hp, 5 hp, 7-1/2 hp Power, DPST Contact Configuration, 20/30 A at 250/600 V AC Contact, 2 Pole, Maintained Action, Back/Side Wired Connection, NEMA 1 Enclosure, Glass Filled Nylon, 4 in L x 4 in W x 12 in H Dimensions
Eaton's Arrow Hart manual motor controllers offer compact, industrial-grade designs built to provide safe, reliable motor control performance in even the most rugged environments. They feature high-impact-resistant, glass-filled nylon construction; easy-to-read electrical ratings on rugged steel mounting straps; clear ON/OFF indicators on large, rugged toggles; distinct wire pockets and thick-wall arc barriers to contain strands; and screw-and-clamp or box-lug terminals to meet individual project requirements. Plus, two sets of contacts per pole distribute load and make/break action for long, reliable duty.
- 14 to 10 AWG allowable wire range
- Totally enclosed body eliminates exposed contacts
- Enclosures can be padlocked to conform to OSHA lockout requirements
- Cam and roll design provides dependable, trouble-free switch action
- Separate arc quenching chambers isolate each pole
- Front terminals are designed for easy wiring
Product Details
EATON Arrow Hart™ Eaton Wiring Devices Manual Motor Control Switch, 1-Phase, 250/600 V AC, 20 to 30 A, 2 hp, 3 hp, 5 hp, 7-1/2 hp Power, DPST Contact Configuration, 20/30 A at 250/600 V AC Contact, 2 Pole, Maintained Action, Back/Side Wired Connection, NEMA 1 Enclosure, Glass Filled Nylon, 4 in L x 4 in W x 12 in H Dimensions
Eaton's Arrow Hart manual motor controllers offer compact, industrial-grade designs built to provide safe, reliable motor control performance in even the most rugged environments. They feature high-impact-resistant, glass-filled nylon construction; easy-to-read electrical ratings on rugged steel mounting straps; clear ON/OFF indicators on large, rugged toggles; distinct wire pockets and thick-wall arc barriers to contain strands; and screw-and-clamp or box-lug terminals to meet individual project requirements. Plus, two sets of contacts per pole distribute load and make/break action for long, reliable duty.
Attributes
Features
- 14 to 10 AWG allowable wire range
- Totally enclosed body eliminates exposed contacts
- Enclosures can be padlocked to conform to OSHA lockout requirements
- Cam and roll design provides dependable, trouble-free switch action
- Separate arc quenching chambers isolate each pole
- Front terminals are designed for easy wiring
