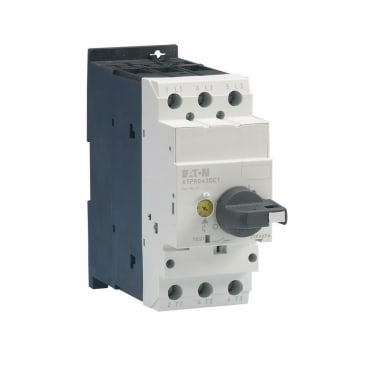

EATON XTPR016DC1 Image 1

EATON XTPR016DC1 10-16A CLASS 10 FRAME D ROTARY CIRCUIT BREAKER FOR MANUAL MOTOR CONTROL

MFR Part #: XTPR016DC1
SKU #: 1312179
Brand: EATON
UPC: 4015081548385
EATON XTPR016DC1 XT Series D-Frame Motor Protector, Rotary/On/Off Action, 3 Poles, IP20 Enclosure
1 year
Neutral Base
For motor protective circuit breaker, group motor installations and individual branch motor applications
UL 508,CSA Std. C22.2

EATON Motor Protector, D-Frame, Series: XT Series, 690 V AC, 16 A, 40 to 60 Hz Frequency, 12.5 kW Wattage, 3 Pole, Setting: 63 A, Manual Reset, 3 ph, Screw Connection, Rotary/On/Off Action, Bi-Metal Overload Relay, 10 to 16 A Full Load, 1NO 1NC Auxiliary, Rotary Control, IP20 Enclosure, -25 to 55 deg C Operating, 2.17 in W x 6.73 in D x 5.57 in H Dimensions

Eaton’s XT line brings IEC power control to a whole new level. The XT IEC series includes non-reversing and reversing contactors and starters as well as overload relays and accessories. Enclosed control options include metallic and non-metallic enclosures with circuit breakers, and North American or European fuses. Save space and engineering design time with XT IEC series overload relays.

Product Details

EATON Motor Protector, D-Frame, Series: XT Series, 690 V AC, 16 A, 40 to 60 Hz Frequency, 12.5 kW Wattage, 3 Pole, Setting: 63 A, Manual Reset, 3 ph, Screw Connection, Rotary/On/Off Action, Bi-Metal Overload Relay, 10 to 16 A Full Load, 1NO 1NC Auxiliary, Rotary Control, IP20 Enclosure, -25 to 55 deg C Operating, 2.17 in W x 6.73 in D x 5.57 in H Dimensions

Eaton’s XT line brings IEC power control to a whole new level. The XT IEC series includes non-reversing and reversing contactors and starters as well as overload relays and accessories. Enclosed control options include metallic and non-metallic enclosures with circuit breakers, and North American or European fuses. Save space and engineering design time with XT IEC series overload relays.

Attributes

Action: Rotary/ON/OFF
Amperage Rating: 16 A
Auxiliary Contact Rating: 1NO 1NC
Connection Type: Screw
Control Type: Rotary
Dimensions: 2.17 in W x 6.73 in D x 5.57 in H
Enclosure Type: IP20
Frequency Rating: 40 to 60 Hz
Full Load Current: 10 to 16 A
Number of Poles: 3
Operating Temperature: -25 to 55 deg C
Overload Relay: Bi-Metal
Phase: 3
Reset Type: Manual
Series: XT Series
Setting: 63 A
Type: D-Frame
Voltage Rating: 690 V AC
Wattage: 12.5 kW

Features

  • On/Off rotary handle with lockout provision
  • Visible trip indication
  • Phase loss sensitivity
  • Identification markers standard on starter faceplate
  • Built-in heater and magnetic trip elements to protect the motor
  • Overload protection, trip class 10 A
  • Class 10 trip
  • 45 mm frame
