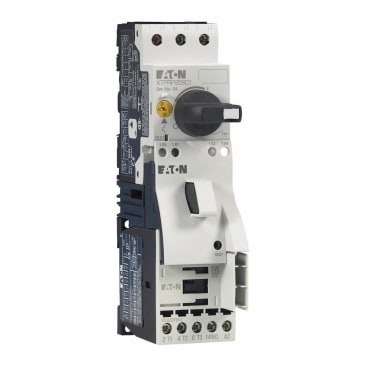

EATON XTPR001BC1 Image 1

EATON XTPR001BC1 0.63-1A CLASS 10 FRAME B ROTARY CIRCUIT BREAKER FOR MANUAL MOTOR CONTROL

MFR Part #: XTPR001BC1
SKU #: 1312178
Brand: EATON
UPC: 4015082653354
EATON XTPR001BC1 Motor Protector With Thermal and Magnetic Trip
1 year
Commercial / Institutional Buildings / Structures - Safety and Security Systems
CSA Std. C22.2,UL 508

EATON Motor Protector, Series: XT Series, 690 V AC, 1 A, 0.55 hp Motor, Setting: 0.63 to 1 A, Manual Reset, 3 ph, Rotary Handle Control, Starting Modes: ON/OFF

Eaton’s XT line brings IEC power control to a whole new level. The XT IEC series includes non-reversing and reversing contactors and starters as well as overload relays and accessories. Enclosed control options include metallic and non-metallic enclosures with circuit breakers, and North American or European fuses. Save space and engineering design time with XT IEC series overload relays.

Product Details

EATON Motor Protector, Series: XT Series, 690 V AC, 1 A, 0.55 hp Motor, Setting: 0.63 to 1 A, Manual Reset, 3 ph, Rotary Handle Control, Starting Modes: ON/OFF

Eaton’s XT line brings IEC power control to a whole new level. The XT IEC series includes non-reversing and reversing contactors and starters as well as overload relays and accessories. Enclosed control options include metallic and non-metallic enclosures with circuit breakers, and North American or European fuses. Save space and engineering design time with XT IEC series overload relays.

Attributes

Amperage Rating: 1 A
Control Type: Rotary Handle
Motor Power: .55 hp
Phase: 3
Reset Type: Manual
Series: XT Series
Setting: 0.63 to 1 A
Voltage Rating: 690 V AC

Features

  • On/Off rotary handle with lockout provision
  • Visible trip indication
  • Class 10 overload protection
  • Phase loss sensitivity
  • Ambient temperature compensation to IEC/EN 60947, VDE 0660
  • Fixed short circuit trip 14 times maximum setting of overload FLA dial
  • Type 2 coordination
  • Identification markers standard on starter faceplate
  • Built-in heater and magnetic trip elements to protect the motor
  • Adjustment dial for setting to motor FLA
  • DIN rail mounting
  • 55 mm frame
