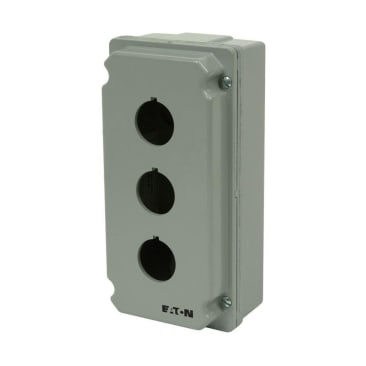

EATON 10250TN3 Image 1

EATON 10250TN3 3-ELEMENT CAST ENCLOSURE

MFR Part #: 10250TN3
SKU #: 1311497
Brand: EATON
UPC: 782113204581
EATON 10250TN3 3-Element Heavy Duty Oiltight/Watertight Pushbutton Enclosure, 8.1 in L x 4.4 in W x 4.2 in D, NEMA 4/4X/12/13 NEMA Rating, Die-Cast Zinc
For 10250T Series 30.5 mm pushbuttons, automation and logic control equipment applications, commercial, institutional, buildings, structures, power distribution and controls
CSA Certified,UL Listed,CE Marked

EATON Pushbutton Enclosure, 3-Element Heavy Duty Oiltight/Watertight, Series: 10250T, 8.1 in Length, 4.4 in Width, 4.2 in Depth, NEMA 4/4X/12/13 NEMA Rating, Surface Mounting, 1 to 150 deg F, Die-Cast Zinc

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

Product Details

EATON Pushbutton Enclosure, 3-Element Heavy Duty Oiltight/Watertight, Series: 10250T, 8.1 in Length, 4.4 in Width, 4.2 in Depth, NEMA 4/4X/12/13 NEMA Rating, Surface Mounting, 1 to 150 deg F, Die-Cast Zinc

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

Attributes

Depth: 4.2 in
Length: 8.1 in
Material: Die-Cast Zinc
Mounting Type: Surface
NEMA Rating: NEMA 4/4X/12/13
Series: 10250T
Temperature Rating: 1 to 150 deg F
Type: 3-Element Heavy Duty Oiltight/Watertight
Width: 4.4 in

Resources

Specification Sheet
