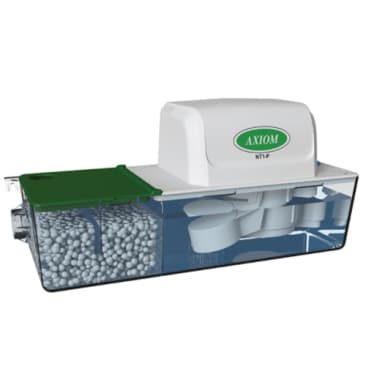

AXIOM NT1-P CONDENSATE NEUTRALIZER TANK/REMOVAL PUMP (500KBTU/HR)
MFR Part #: NT1-P
SKU #: 1178009
Brand: Axiom
UPC: 848012
AXIOM NT1-P Condensate Neutralizer Tank, 500 kBtu/hr Capacity, 1.9 gph, 3/4 in, FNPT, Polypropylene
2 Year
120 VAC, 60 Hz, 87 W, 0.89 A Removal Pump
ANSI/UL 778 Specified | CAN/CSA C22.2 No. 108 4007096 Certified | cETLus Intertek Listed
Product Details
Attributes
Features
Resources
AXIOM Condensate Neutralizer Tank, 500 kBtu/hr Capacity, GPH: 1.9 gph, 3/4 in Connection, FNPT Connection, Polypropylene, 15.8 in L x 5.3 in W
The NT1-P is ideal for installations that require both condensate removal and neutralization. The condensate produced by gas-fired condensing appliances is acidic and has the potential to harm the environment and the sewer system.
Capacity:500 kBtu/hr
Connection Size:3/4 in
Connection Type:FNPT
Dimensions:15.8 in L x 5.3 in W
GPH:1.9 gph
Material:Polypropylene
Specifications:500000 Btu/hr Input Capacity
- Maximum delivery head 6 m
- High level float with NC or NO contacts (factory set to NC) for hook up to alarm system
- NeutraPump prevents acidic condensate from corroding drains and sewer systems
- Neutralized condensate is more environmentally friendly
- Low-profile design for appliances with near floor condensate drain
- All materials made from corrosion-resistant material
- 4 L tank with baffles designed to channel flow through LipHter+ media for complete neutralization
- Includes initial charge of Axiom's special LipHter+ neutralizing media
Product Details
AXIOM Condensate Neutralizer Tank, 500 kBtu/hr Capacity, GPH: 1.9 gph, 3/4 in Connection, FNPT Connection, Polypropylene, 15.8 in L x 5.3 in W
The NT1-P is ideal for installations that require both condensate removal and neutralization. The condensate produced by gas-fired condensing appliances is acidic and has the potential to harm the environment and the sewer system.
Attributes
Capacity: 500 kBtu/hr
Connection Size: 3/4 in
Connection Type: FNPT
Dimensions: 15.8 in L x 5.3 in W
GPH: 1.9 gph
Material: Polypropylene
Specifications: 500000 Btu/hr Input Capacity
Features
- Maximum delivery head 6 m
- High level float with NC or NO contacts (factory set to NC) for hook up to alarm system
- NeutraPump prevents acidic condensate from corroding drains and sewer systems
- Neutralized condensate is more environmentally friendly
- Low-profile design for appliances with near floor condensate drain
- All materials made from corrosion-resistant material
- 4 L tank with baffles designed to channel flow through LipHter+ media for complete neutralization
- Includes initial charge of Axiom's special LipHter+ neutralizing media
