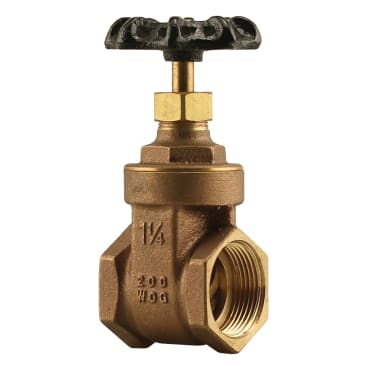

BOSHART 0818-12 Image 1

BOSHART 0818-12 1-1/4IN IP FULL PORT GATE VALVE

MFR Part #: 0818-12
SKU #: 1022999
Brand: Boshart Industries
UPC: 777808004232
Boshart Industries 0818-12 Gate Valve, 1-1/4 in Nominal, FNPT End Style, Brass Body, Handwheel Actuator, Import
ANSI/ASME B1.20.1 | NSF/ANSI 61 | CSA Approved

Boshart Industries Gate Valve, Series: 0818 Series, 1-1/4 in Nominal, FNPT End Style, 200 psi WOG Pressure, Up to 150 deg F, Full Port, Media: Gas/Oil/Water, Handwheel Actuator, 2.24 in Inlet to Outlet Length, 4.61 in Top to Inlet Center, Brass Body, Brass Trim, PTFE Softgoods, 2.72 in Diameter Hand Wheel, Import

Brass gate valves are used to shut-off water supply. They are an excellent choice where this needs to be done slowly by turning the black hand wheel. No lead options are available for potable water applications.

Product Details

Boshart Industries Gate Valve, Series: 0818 Series, 1-1/4 in Nominal, FNPT End Style, 200 psi WOG Pressure, Up to 150 deg F, Full Port, Media: Gas/Oil/Water, Handwheel Actuator, 2.24 in Inlet to Outlet Length, 4.61 in Top to Inlet Center, Brass Body, Brass Trim, PTFE Softgoods, 2.72 in Diameter Hand Wheel, Import

Brass gate valves are used to shut-off water supply. They are an excellent choice where this needs to be done slowly by turning the black hand wheel. No lead options are available for potable water applications.

Attributes

Body Material: Brass
Country Of Origin: Indonesia
Nominal Size: 1-1/4 in
Actuator Type: Handwheel
Domestic/Import: Import
End Style: FNPT
Hand Wheel Diameter: 2.72 in
Inlet to Outlet Length: 2.24 in
Media: Gas/Oil/Water
Port Type: Full
Softgoods Material: PTFE
Top to Inlet Center: 4.61 in
Trim Material: Brass

Features

  • WOG pressure rating based on ambient temperature
  • Non-rising stem
  • Black cast hand wheel
  • Brass disc/stem
  • PTFE gland packing/stem packing

Resources

Specification Sheet
