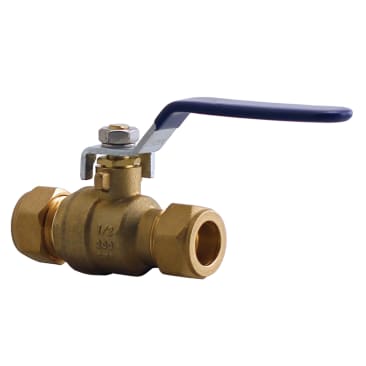

BOSHART 082CP-05NL Image 1

BOSHART 082CP-05NL 1/2 COMP X COMP BALL VLV W/DRAIN PORT

MFR Part #: 082CP-05NL
SKU #: 1239607
Brand: Boshart Industries
UPC: 777808440733
Boshart Industries 082CP-05NL 082CP-NL Series Ball Valve With Drain, 1/2 in Nominal, Compression End Style, Forged Brass Body, Standard Port, EPDM/PTFE/Steel Softgoods, Import
Industrial, Irrigation, Plumbing, Pool and Spa Applications
cUPC IGC 157 | NSF/ANSI 61/372 | SAE J512 | CSA Approved

Boshart Industries Ball Valve, Lead Free, Series: 082CP-NL Series, 1/2 in Nominal, Compression End Style, 200 psi WOG Pressure, Up to 300 deg F, Standard Port, Media: Gas/Oil/Water, 0.59 in Orifice, Rubber Grip Handle Actuator, Polished Chrome Brass Ball, 3.74 in Inlet to Outlet Length, 2.34 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, EPDM/PTFE/Steel Softgoods, Import

Boshart Industries Brass Ball Valves with a drain are perfect for applications where water needs to be drained from the pipe after the valve. When installing one of these valves make sure the drain is not installed on the supply side of the valve.

Product Details

Boshart Industries Ball Valve, Lead Free, Series: 082CP-NL Series, 1/2 in Nominal, Compression End Style, 200 psi WOG Pressure, Up to 300 deg F, Standard Port, Media: Gas/Oil/Water, 0.59 in Orifice, Rubber Grip Handle Actuator, Polished Chrome Brass Ball, 3.74 in Inlet to Outlet Length, 2.34 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, EPDM/PTFE/Steel Softgoods, Import

Boshart Industries Brass Ball Valves with a drain are perfect for applications where water needs to be drained from the pipe after the valve. When installing one of these valves make sure the drain is not installed on the supply side of the valve.

Attributes

Ball MaterialPolished Chrome Brass
Body MaterialForged Brass
Connection TypeCompression
Country Of OriginChina
Domestic/ImportImport
Inlet to Outlet Length3.74 in
MediaGas/Oil/Water
Nominal Size1/2 in
Operator TypeRubber Grip Handle
Orifice Size.59 in
Port TypeStandard
Pressure Rating200 psi WOG
Series082CP-NL Series
Softgoods MaterialEPDM/PTFE/Steel
Temperature RatingUp to 300 deg F
Top to Inlet Center2.34 in
Trim MaterialBrass/PTFE

Features

  • 200 psi WOG non-shock - WOG pressure rating based on ambient temperature
  • Integral drain port to allow system draining
  • Blow-out proof stem
  • Zinc plated handle with blue plastic sleeve
  • No lead <0.25% pb by weighted average
  • Brass stem/sleeve/PTFE seat
  • EPDM O-ring/PTFE stem packing/steel washer
