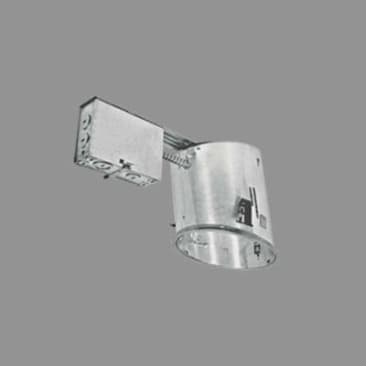

ELITE B36RIC-AT-W Image 1

ELITE B36RIC-AT-W 6IN SLOPED IC REMODEL AIR-SHUT HOUSING

MFR Part #: B36RIC-AT-W
SKU #: 1091005
Brand: Elite Lighting
UPC: 847801030870
Elite Lighting B36RIC-AT-W Air-Shut Slope Remodel Housing, R/PAR30/A19/BR30 Incandescent Lamp, IC Insulation, 6-1/2 in Ceiling Opening, Aluminum Housing
This product may be subject to ecological fees.
ETL Listed

Elite Lighting Slope Remodel Housing, Air-Shut, 6-1/2 in Ceiling Opening, R/PAR30/A19/BR30 Incandescent Lamp, 60/65/75 W Lamp, 1 Lamps, IC Insulation, Ceiling Mount, For Use With: B601L, B646, B605L, B663, B673, B391, B397, B392, B605, B601, B602 Series Trim, 6-1/2 in Dia, 15 in Depth, Aluminum Housing

Thermally protected, IC rated specification grade remodel recessed housing. For remodeling installations where housing will be in direct contact with insulation. Designed for sloped ceiling applications where the ceiling pitch ranges from 2/12 to 6/12. Accommodates up to 50W PAR30, R30 lamps, 60W A19 lamps and 65W BR30 lamps.

Product Details

Elite Lighting Slope Remodel Housing, Air-Shut, 6-1/2 in Ceiling Opening, R/PAR30/A19/BR30 Incandescent Lamp, 60/65/75 W Lamp, 1 Lamps, IC Insulation, Ceiling Mount, For Use With: B601L, B646, B605L, B663, B673, B391, B397, B392, B605, B601, B602 Series Trim, 6-1/2 in Dia, 15 in Depth, Aluminum Housing

Thermally protected, IC rated specification grade remodel recessed housing. For remodeling installations where housing will be in direct contact with insulation. Designed for sloped ceiling applications where the ceiling pitch ranges from 2/12 to 6/12. Accommodates up to 50W PAR30, R30 lamps, 60W A19 lamps and 65W BR30 lamps.

Attributes

Depth15 in
Diameter6-1/2 in
Insulation TypeIC
Ceiling Opening6-1/2 in
Housing MaterialAluminum
Lamp TypeR/PAR30/A19/BR30 Incandescent
Lamp Wattage60/65/75 W
Mounting TypeCeiling
Number of Lamps1
Suitable For Use WithB601L, B646, B605L, B663, B673, B391, B397, B392, B605, B601, B602 Series Trim
TypeAir-Shut

Features

  • 6 in aperture
