RAB 080719 LED WP-LED80 120-277V VARI TMP BRNZ 0-10V DIM
MFR Part #: 080719
SKU #: 1236660
Brand: RAB® Design Lighting
UPC: 61184807199

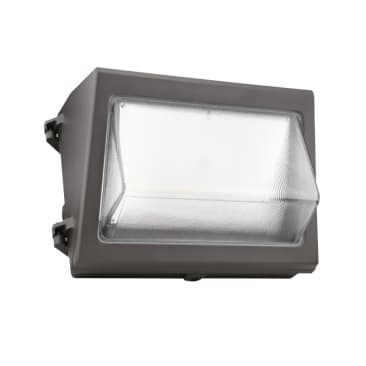

RAB DESIGN® WP-LED Series 080719 Wall Pack, 120-277 V, LED Lamp, 10827 Lumens, Borosilicate Glass Lens
5 Year
For entrances, schools, loading docks, perimeter lighting and more
cULus Listed | DLC Certified | IP65 Rated | UL Listed | Wet Location Rated
Product Details
Attributes
Features
Resources
RAB DESIGN® Wall Pack, WP-LED Series, 120-277 V, 0.31 to 0.7 A, LED Lamp, 78 W Lamp Wattage, 10827 Lumens, 4000 K, 80 CRI, Dimmable, 50000 to 100000 hr Average Life, Borosilicate Glass Lens, Aluminum Fixture, Bronze Fixture, 14.36 in Overall Length, 7.39 in Overall Width, 9.34 in Overall Height
Amperage Rating:0.31 to 0.7 A
Average Life:50000 to 100000 hr
Color Rendering Index (CRI):80
Color Temperature:4000 K
Country Of Origin:China
Dimmable/Non-Dimmable:Dimmable
Fixture Finish:Bronze
Fixture Material:Aluminium
Lamp Type:LED
Lamp Wattage:78 W
LED Life:100000 hrs
Lens Type:Borosilicate Glass
Lumens:10827 Lumens
Overall Height:9.34 in
Overall Length:14.36 in
Overall Width:7.39 in
Power Factor:.92
Series:WP-LED Series
Total Harmonic Distortion:.142 %
Voltage Rating:120-277 V
- Serves as an ideal replacement for 150 to 400 W HID wallpacks
- Color selectable switch inside fixture allows the installer to choose between 3000/4000/5000 K CCT
- Side hinge design allows the installer to use two hands for wiring
- Borosilicate glass lens
Product Details
RAB DESIGN® Wall Pack, WP-LED Series, 120-277 V, 0.31 to 0.7 A, LED Lamp, 78 W Lamp Wattage, 10827 Lumens, 4000 K, 80 CRI, Dimmable, 50000 to 100000 hr Average Life, Borosilicate Glass Lens, Aluminum Fixture, Bronze Fixture, 14.36 in Overall Length, 7.39 in Overall Width, 9.34 in Overall Height
Attributes
Amperage Rating: 0.31 to 0.7 A
Average Life: 50000 to 100000 hr
Color Rendering Index (CRI): 80
Color Temperature: 4000 K
Country Of Origin: China
Dimmable/Non-Dimmable: Dimmable
Fixture Finish: Bronze
Fixture Material: Aluminium
Lamp Type: LED
Lamp Wattage: 78 W
LED Life: 100000 hrs
Lens Type: Borosilicate Glass
Lumens: 10827 Lumens
Overall Height: 9.34 in
Overall Length: 14.36 in
Overall Width: 7.39 in
Power Factor: .92
Series: WP-LED Series
Total Harmonic Distortion: .142 %
Voltage Rating: 120-277 V
Features
- Serves as an ideal replacement for 150 to 400 W HID wallpacks
- Color selectable switch inside fixture allows the installer to choose between 3000/4000/5000 K CCT
- Side hinge design allows the installer to use two hands for wiring
- Borosilicate glass lens
