10 GPM GREASE INTERCEPTOR 2IN MJ JAY R SMITH 8010
Product Details
Attributes
Features
Resources

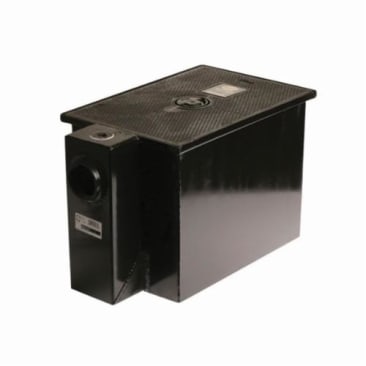

Smith® Universal Grease Interceptor, Large Capacity, Series: 8000, 2 in Nominal, 20 lb, 10 gpm, Steel, 11-1/2 in W x 13 in H
Used in kitchens, restaurants, institutions, and all types of food processing areas where waste water contains grease, fats and oil. Rate of flow into interceptor is controlled by a flow control fitting, thus enabling the interceptor to collect over 90% of the grease which flows into it. "Uni-lock" cover design permits fast cover removal for periodic cleaning. Interceptor may be set on floor, semi-recessed in floor or fully recessed with cover flush with finished floor. Fig. 8100 Series are extra low designs adaptable for use with dishwashers or low roughing sinks.
- Rate of flow into interceptor is controlled by a flow control fitting, thus enabling the interceptor to collect over 90% of the grease which flows into it
- Uni lock cover design permits fast cover removal for periodic cleaning
- Interceptor may be set on floor, semi-recessed in floor or fully recessed with cover flush with finished floor
- Steel interceptor with gray duco coating inside and outside and flow control fitting
- Upon request, Jay R. Smith Mfg Co will provide the weight of the specific unit, additional weight must be added to compensate for the weight of the liquid/grease when full and in the flowing mode of operation
- Note: it is the responsibility of the installer to check all parts (internal and external) to verify they are in their proper operating order and location
- Whenever an interceptor is to be installed suspended in a floor slab with cradle or independently, proper support is essential for safety and functional integrity of the installation
Product Details
Smith® Universal Grease Interceptor, Large Capacity, Series: 8000, 2 in Nominal, 20 lb, 10 gpm, Steel, 11-1/2 in W x 13 in H
Used in kitchens, restaurants, institutions, and all types of food processing areas where waste water contains grease, fats and oil. Rate of flow into interceptor is controlled by a flow control fitting, thus enabling the interceptor to collect over 90% of the grease which flows into it. "Uni-lock" cover design permits fast cover removal for periodic cleaning. Interceptor may be set on floor, semi-recessed in floor or fully recessed with cover flush with finished floor. Fig. 8100 Series are extra low designs adaptable for use with dishwashers or low roughing sinks.
Attributes
Features
- Rate of flow into interceptor is controlled by a flow control fitting, thus enabling the interceptor to collect over 90% of the grease which flows into it
- Uni lock cover design permits fast cover removal for periodic cleaning
- Interceptor may be set on floor, semi-recessed in floor or fully recessed with cover flush with finished floor
- Steel interceptor with gray duco coating inside and outside and flow control fitting
- Upon request, Jay R. Smith Mfg Co will provide the weight of the specific unit, additional weight must be added to compensate for the weight of the liquid/grease when full and in the flowing mode of operation
- Note: it is the responsibility of the installer to check all parts (internal and external) to verify they are in their proper operating order and location
- Whenever an interceptor is to be installed suspended in a floor slab with cradle or independently, proper support is essential for safety and functional integrity of the installation
