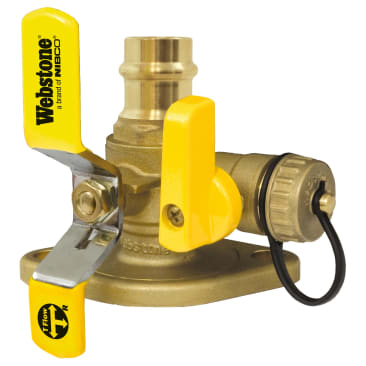

WEBSTONE H-81417HV Image 1

WEBSTONE H-81417HV 2IN PRS ISOLATOR

MFR Part #: H-81417HV
SKU #: 1310300
Brand: NIBCO® | Webstone
UPC: 400052502710
Webstone The Isolator® Pro-Connect Press® H-81417HV Uni-Flange Ball Valve, 2 in Nominal, Press x Rotating Flanged End Style, Brass Body, Full Port, PTFE Softgoods, Import
Limited Lifetime
Adjustable Packing Gland, Nuts and Bolts
Residential, Commercial and Industrial
PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Webstone The Isolator® Pro-Connect Press® Uni-Flange Ball Valve, Series: 8141, 2 in Nominal, Press x Rotating Flanged, 250 psi, 250 deg F, Full Port, Media: Water, Polished Chrome Brass Ball, 5-13/16 in Inlet to Outlet Length, 3-9/16 in Top to Inlet Center, Brass Body, Brass/PTFE Trim, PTFE, Brass, Import

The Isolator is a Uni-Flange Ball Valve that isolates a circulator pump, allowing virtually no air into the system during pump replacement or service. Its innovative design combines multiple components into a single forged brass body that saves time, labor and space. The Isolator has revolutionized the installation of circulator pumps and has evolved into the largest flanged ball valve program in the industry today, featuring patented technology with further patents pending. Designed for use with water, oil, glycol mix in residential or commercial residential plumbing, commericial plumbing, heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.

Product Details

Webstone The Isolator® Pro-Connect Press® Uni-Flange Ball Valve, Series: 8141, 2 in Nominal, Press x Rotating Flanged, 250 psi, 250 deg F, Full Port, Media: Water, Polished Chrome Brass Ball, 5-13/16 in Inlet to Outlet Length, 3-9/16 in Top to Inlet Center, Brass Body, Brass/PTFE Trim, PTFE, Brass, Import

The Isolator is a Uni-Flange Ball Valve that isolates a circulator pump, allowing virtually no air into the system during pump replacement or service. Its innovative design combines multiple components into a single forged brass body that saves time, labor and space. The Isolator has revolutionized the installation of circulator pumps and has evolved into the largest flanged ball valve program in the industry today, featuring patented technology with further patents pending. Designed for use with water, oil, glycol mix in residential or commercial residential plumbing, commericial plumbing, heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.

Attributes

Body Material: Brass
End Style: Press x Rotating Flanged
Nominal Size: 2 in
Pressure Rating: 250 psi
Softgoods Material: PTFE
Temperature Rating: 250 deg F
Trim Material: Brass Stem and PTFE Seat
Ball Material: Polished Chrome Brass
Color: Brass
Domestic/Import: Import
Inlet to Outlet Length: 5-13/16 in
Media: Water
Port Type: Full
Series: 8141
Top to Inlet Center: 3-9/16 in

Features

  • Easily Isolates the Pump for Replacement
  • Prevents Electrolysis and Eliminates Galvanic Corrosion
  • Rotating Flange is Secured by a Snug-Fit Snap-Ring that Provides Greater Control Over Positioning During Installation
  • Flange Features a Conical Inlet to Minimize Turbulence
  • Multi-FunctionDrainMakestheIsolatortheOnlyValveThatDrainsFromEither SideofthePump
  • Fits Virtually Any Standard Circulator Pump
  • Saves 63 min
  • Replaces 8 Components
  • This valve is actuated by a blowout proof stem
