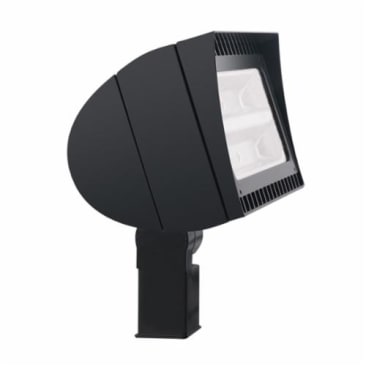

RCL FXLED78SFN Image 1

RCL FXLED78SFN LED FLOODLIGHT 78W 4000K SLIPFITTER MOUNT BRZ

MFR Part #: FXLED78SFN
SKU #: 1105311
Brand: RAB Lighting
UPC: 019813031590
RAB Lighting FXLED78SFN Floodlight Fixture With 120 to 277 V AC ON/OFF Driver,) LED Lamp, 78 W Fixture, 100 to 240/277 V AC, Bronze Housing
5 years
This product may be subject to ecological fees.
Building Facade Lighting, Sign Lighting, LED Landscape Lighting, Instant-On Security Lighting and Wet Locations
ANSI C78.377 | California Title 24 | UL Listed | DLC Certified | IESNA LM-79/80 | CSA Approved

RAB Lighting Floodlight Fixture, Series: FXLED, 100 to 240/277 V AC, 78 W Fixture, 0.66/0.41/0.35/0.3 A, LED Lamp, 78 W Lamp, 100000 hr Average Life, Neutral Light, 4000 K Color Temperature, 81 CRI, Class 2/Constant Current Ballast, Specular Polycarbonate Reflector Lens, 4645 Lumens, NEMA 7H x 6V/IP66 Enclosure, Slip Fitter Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 9 in H x 14 in W x 9 in D Dimensions

Product Details

RAB Lighting Floodlight Fixture, Series: FXLED, 100 to 240/277 V AC, 78 W Fixture, 0.66/0.41/0.35/0.3 A, LED Lamp, 78 W Lamp, 100000 hr Average Life, Neutral Light, 4000 K Color Temperature, 81 CRI, Class 2/Constant Current Ballast, Specular Polycarbonate Reflector Lens, 4645 Lumens, NEMA 7H x 6V/IP66 Enclosure, Slip Fitter Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 9 in H x 14 in W x 9 in D Dimensions

Attributes

Amperage Rating: 0.66/0.41/0.35/0.3 A
Average Life: 100000 hr
Ballast Type: Class 2/Constant Current
Color Rendering Index (CRI): 81
Color Temperature: 4000 K
Dimensions: 9 in H x 14 in W x 9 in D
Enclosure Type: NEMA 7H x 6V/IP66
Fixture Wattage: 78 W
Housing Finish: Bronze
Housing Material: Die Cast Aluminum
Lamp Type: LED
Lamp Wattage: 78 W
Lens Type: Specular Polycarbonate Reflector
Light Color: Neutral
Lumens: 4645 Lumens
Mounting Type: Slip Fitter
Series: FXLED
Voltage Rating: 100 to 240/277 V AC

Features

  • Ultra high output, high efficacy LED floodlight with wide NEMA type 6H x 6V beam spread
  • Patent pending airflow technology ensures long LED and driver lifespan
  • 66% energy cost savings vs HID
  • Air flow technology heat dissipation
  • 0.66 A at 120 VAC, 0.41 A at 208 VAC, 0.35 A at 240 VAC, 0.3 A at 277 VAC
  • Without photocell

Resources

Catalog
Specification Sheet
Warranty Information
