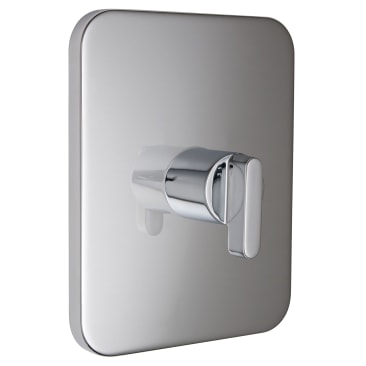

AM STD T506730.002 Image 1

MOMENTS TRIM 3/4 WAY DIVERTER AM STD T506730.002

MFR Part #: T506730.002
SKU #: 1078076
Brand: American Standard
UPC: 012611411700
American Standard T506730.002 Diverter Valve Trim, Polished Chrome
Hot Limit Safety Stop
ADA Compliant | ANSI A117.1 | ASME A112.18.1 | ASSE 1016 | CSA B125

American Standard, T506730.002, Diverter Valve Trim, Town Square® Collection, Metal Lever Handle, 2-7/8 in Dia Trim, 1/2 in NPT Valve Inlet Connection, 1/2 in NPT Valve Outlet Connection, Wall Mounting, For Use With: Model R420/R430 Rough-In Diverter Valve, Solid Brass, Polished Chrome, Domestic

A household monument to minimalism. This single-handle central thermostat trim kit is part of our modern Moments® faucet collection. When installed with a thermostatic mixing valve (sold separately), it allows you to select the water temperature for your shower head and body/side sprays. Requires a separate on/off volume control.

Product Details

American Standard, T506730.002, Diverter Valve Trim, Town Square® Collection, Metal Lever Handle, 2-7/8 in Dia Trim, 1/2 in NPT Valve Inlet Connection, 1/2 in NPT Valve Outlet Connection, Wall Mounting, For Use With: Model R420/R430 Rough-In Diverter Valve, Solid Brass, Polished Chrome, Domestic

A household monument to minimalism. This single-handle central thermostat trim kit is part of our modern Moments® faucet collection. When installed with a thermostatic mixing valve (sold separately), it allows you to select the water temperature for your shower head and body/side sprays. Requires a separate on/off volume control.

Attributes

Collection: Town Square®
Finish/Color: Polished Chrome
Handle Type: Metal Lever
Material: Solid Brass
Domestic/Import: Domestic
Mounting Type: Wall
Trim Size: 2-7/8 in Dia
Valve Inlet Connection: 1/2 in NPT
Valve Outlet Connection: 1/2 in NPT

Features

  • Single unit contains one handle which sets the desired temperature
  • Temperature is maintained by a wax element moving a shuttle valve between hot and cold
  • Escutcheon plate is stamped brass
  • Valve has a high flow rate ideal for multiple outlet installations
  • Must order with on/off volume control to complete system
  • Without volume control

Resources

Instruction/Installation Manual
Specification Sheet
