AM STD 7052807.002 DELANCEY 8CC LAVATORY FAUCET CHROME

MFR Part #: 7052807.002
SKU #: 1272788
Brand: American Standard
UPC: 012611657467

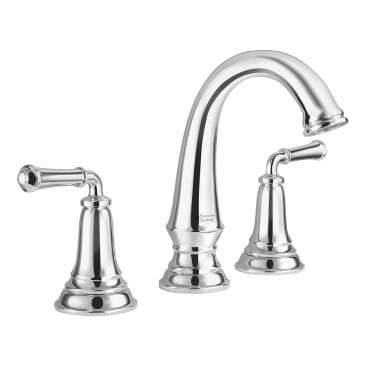

American Standard 7052807.002 Delancey® Widespread Lavatory Faucet, Residential, 1.2 gpm Flow Rate, 5-1/4 in H Spout, 8 in Center, Polished Chrome, 2 Handles, Brass Push Pop-Up Drain, Import
1 year
ADA Compliant | ANSI A117.1 | ASME A112.18.1 | CSA B125.1 | CEC Certified | CALGreen Compliant | EPA WaterSense® Certified | Lead Law Compliant | NSF 61/Section 9 | NSF 372

American Standard, 7052807.002, Widespread Lavatory Faucet, Delancey® Collection, 1.2 gpm Flow Rate, 8 in Center Distance, 4-13/16 in Spout Reach, 5-1/4 in Spout Height, 24 in L Hose, Lever Handle, 2 Handles, Brass Push Pop-Up Drain, 3 Faucet Holes, 3/8 in Connection, Compression Connection, 1-1/2 in Maximum Deck Thickness, Deck Mounting, 1/4 Turn Washerless Ceramic Disc, 6.625 in L x 15.25 in W x 15.254 in H Dimensions, Polished Chrome, Import, Residential Commercial/Residential

Inspired by the finer points of classic architecture, the Delancey®® bath faucet collection from American Standard captures the refined elegance of stately columns and sublime details. Enduring both in style and performance, drip-free Delancey®® faucets are available in beautiful, tarnish and scratch-resistant finishes.

Product Details

American Standard, 7052807.002, Widespread Lavatory Faucet, Delancey® Collection, 1.2 gpm Flow Rate, 8 in Center Distance, 4-13/16 in Spout Reach, 5-1/4 in Spout Height, 24 in L Hose, Lever Handle, 2 Handles, Brass Push Pop-Up Drain, 3 Faucet Holes, 3/8 in Connection, Compression Connection, 1-1/2 in Maximum Deck Thickness, Deck Mounting, 1/4 Turn Washerless Ceramic Disc, 6.625 in L x 15.25 in W x 15.254 in H Dimensions, Polished Chrome, Import, Residential Commercial/Residential

Inspired by the finer points of classic architecture, the Delancey®® bath faucet collection from American Standard captures the refined elegance of stately columns and sublime details. Enduring both in style and performance, drip-free Delancey®® faucets are available in beautiful, tarnish and scratch-resistant finishes.

Attributes

Collection: Delancey®
Country Of Origin: Mexico
Finish/Color: Polished Chrome
Number of Handles: 2
Spout Height: 5-1/4 in
Spout Reach: 4-13/16 in
Center Distance: 8 in
Commercial/Residential: Residential
Connection Size: 3/8 in
Connection Type: Compression
Dimensions: 6.625 in L x 15.25 in W x 15.254 in H
Domestic/Import: Import
Finish: Polished Chrome
Flow Rate: 1.2 gpm
Handle Material: Zinc
Handle Type: Lever
Hose Size: 24 in L
Material: Brass
Maximum Deck Thickness: 1-1/2 in
Mounting Type: Deck
Number of Faucet Holes: 3
Valve Material: Ceramic

Features

  • Brass push pop-up drain body with 1-1/4 in tail piece
  • Integrated flexible hose connections on valve body for 6 to 12 in installations
  • Cast brass spout
  • 24 in stainless steel braided flexible supply hoses with 3/8 in compression connectors

Resources

Instruction/Installation Manual
Line Drawing
Specification Sheet
