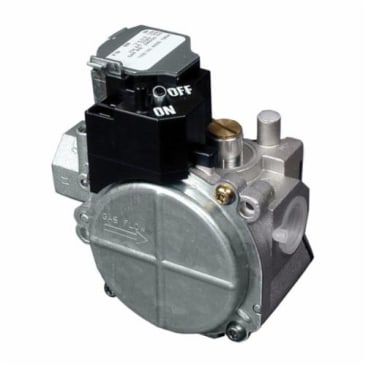

WHITE RODGERS 36G22-254 1/2 FIP STRAIGHT THROUGH REPLACEMENT GAS VALVE
Product Details
Attributes
Features
Resources
White-Rodgers™ Gas Valve, Series: 36G, 1/2 in Nominal, 0.5 psi Pressure, HSI/DSI Ignition, 140000 Btu/hr Nominal, Liquid Propane/Natural Gas Gas, 24 V Coil, 1/4 in Quick-Connect Terminal Electrical Connections, -40 to 175 deg F, Import
The 36G is a combination gas control valve designed for use with non-piloted intermittent ignition systems. the control is designed to meet Today's maximum capacity, smaller size and high efficiency gas systems.
- Inlet and outlet screens
- Quiet redundant
- Built-in pressure tap
- 50/60 Hz
- Flow direction straight-thru
- Fast opening
- Inlet/outlet pressure taps
- 3-1/2 in regulator setting
- WC at 110000 Btu/hr, inlet/outlet filters
- Service replacement valve for Goodman P/N 0151M0013, B1282628S, B12826-28, B1282614, B12826-14, white Rodgers 36G22Y-202 and honeywell VR8215S1214
- 2-3/4 in swing radius
- For non-piloted intermittent ignition systems
- 226800 Btu/hr LPG nominal capacity
