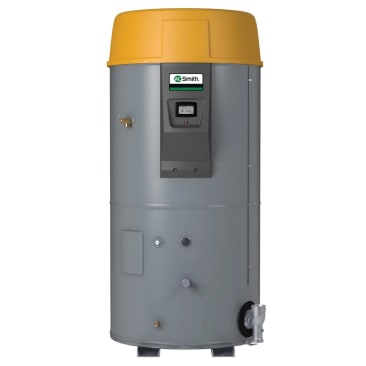

AO SMITH 100327593 BTH-150 100USG NATURAL GAS WATER HEATER
MFR Part #: BTH-150
SKU #: 0434210
Brand: A.O. Smith®
UPC: 100327593
AO Smith® Cyclone™ BTH-150 Gas Water Heater, 100 gal, 150000 Btu/hr, 44 kW, Natural Gas
5 Year Limited Tank and 1 Year Parts
For commercial applications
CSA Certified | cULus Listed | UL Listed
Product Details
Attributes
Features
Resources
AO Smith® Gas Water Heater, 100 gal Capacity, 150000 Btu/hr, 44 kW, 127 to 594 gph Recovery Rate, 96 % Efficiency, 3 in Vent, Power Vent, 5 A, 120 V, 60 Hz, NPT Connection, 160 psi, Energy Star Compliant: Yes, Recovery Efficiency: 96 %, Top Mounting, Natural Gas Fuel, Direct Spark Ignition, Steel, Finish: Painted, 90 to 180 deg F, 27-3/4 in Dia x 76-1/2 in H
Amperage Rating:5 A
BTU Rating:150000 Btu/hr
Capacity:100 gal
Connection Type:NPT
Dimensions:27-3/4 in Dia x 76-1/2 in H
Efficiency:96 %
Energy Star Compliant:Yes
Finish:Painted
Frequency Rating:60 Hz
Fuel Type:Natural Gas
Heating Capacity:150000 btu
Ignition Type:Direct Spark
Material:Steel
Mounting Type:Top
Power Rating:44 kW
Pressure Rating:160 psi
Recovery Efficiency:96 %
Recovery Rate:127 to 594 gph
Temperature Rating:90 to 180 deg F
Vent Size:3 in
Vent Type:Power
Voltage Rating:120 V
Water Heater Type:Gas
- Advanced control system with touchscreen display and iCOMM™ remote monitoring capabilities
- Submerged combustion chamber with helical heat exchanger coil
- Intelligent demand response (IDR) senses large water draws and adjusts temperature
- Receive leak detection alerts with optional leak detection kit
Product Details
AO Smith® Gas Water Heater, 100 gal Capacity, 150000 Btu/hr, 44 kW, 127 to 594 gph Recovery Rate, 96 % Efficiency, 3 in Vent, Power Vent, 5 A, 120 V, 60 Hz, NPT Connection, 160 psi, Energy Star Compliant: Yes, Recovery Efficiency: 96 %, Top Mounting, Natural Gas Fuel, Direct Spark Ignition, Steel, Finish: Painted, 90 to 180 deg F, 27-3/4 in Dia x 76-1/2 in H
Attributes
Amperage Rating: 5 A
BTU Rating: 150000 Btu/hr
Capacity: 100 gal
Connection Type: NPT
Dimensions: 27-3/4 in Dia x 76-1/2 in H
Efficiency: 96 %
Energy Star Compliant: Yes
Finish: Painted
Frequency Rating: 60 Hz
Fuel Type: Natural Gas
Heating Capacity: 150000 btu
Ignition Type: Direct Spark
Material: Steel
Mounting Type: Top
Power Rating: 44 kW
Pressure Rating: 160 psi
Recovery Efficiency: 96 %
Recovery Rate: 127 to 594 gph
Temperature Rating: 90 to 180 deg F
Vent Size: 3 in
Vent Type: Power
Voltage Rating: 120 V
Water Heater Type: Gas
Features
- Advanced control system with touchscreen display and iCOMM™ remote monitoring capabilities
- Submerged combustion chamber with helical heat exchanger coil
- Intelligent demand response (IDR) senses large water draws and adjusts temperature
- Receive leak detection alerts with optional leak detection kit
