LF1 L1170-PEX-M2 WATTS 0559153

MFR Part #: 0559153
SKU #: 1107311
Brand: WATTS®
UPC: 098268452310

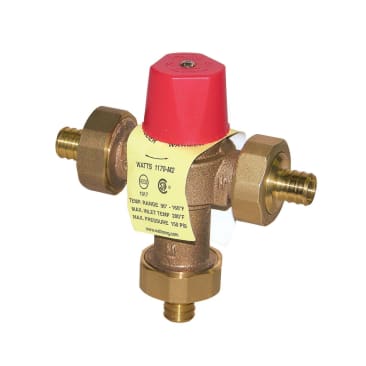

WATTS® 0559153 LF1170 Temperature Control Valve, 1 in Nominal, PEX End Style, 150 psi Pressure, 0.5 gpm Flow Rate, Copper Silicon Alloy Body
Limited
Commercial, Residential and Institutional
ASSE 1017/1069/1070 | CSA B125 | cUPC/IAPMO listed and UPC listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

WATTS®, 0559153, Temperature Control Valve, Series: LF1170, 1 in Nominal, PEX End Style, 150 psi Pressure, 200 deg F, 0.5 gpm Flow Rate, Media: Water, Copper Silicon Alloy Body, Stainless Steel Trim, EPDM O-Ring Softgoods, 5-7/8 in W x 5-7/8 in H Dimensions

This 1 inch lead free hot water control valve is designed for installation on water heating equipment to provide tempered water to point-of-use fixtures and is ideal for radiant heat applications. The double throttling design combines hot and cold water control for a sensitive response to water temperature changes in the mixing chamber. It consists of a lead free brass body, crimp end connections for PEX tubing, solid wax hydraulic principle thermostat, integral filter washers and check valves, virtual shutoff upon loss of cold water supply, and a locking mechanism for the temperature setting. The maximum pressure is 150 psi (10.3 bar). The adjustable field range temperature is 60 to 120 degrees F (16 to 49 degrees C).

Product Details

WATTS®, 0559153, Temperature Control Valve, Series: LF1170, 1 in Nominal, PEX End Style, 150 psi Pressure, 200 deg F, 0.5 gpm Flow Rate, Media: Water, Copper Silicon Alloy Body, Stainless Steel Trim, EPDM O-Ring Softgoods, 5-7/8 in W x 5-7/8 in H Dimensions

This 1 inch lead free hot water control valve is designed for installation on water heating equipment to provide tempered water to point-of-use fixtures and is ideal for radiant heat applications. The double throttling design combines hot and cold water control for a sensitive response to water temperature changes in the mixing chamber. It consists of a lead free brass body, crimp end connections for PEX tubing, solid wax hydraulic principle thermostat, integral filter washers and check valves, virtual shutoff upon loss of cold water supply, and a locking mechanism for the temperature setting. The maximum pressure is 150 psi (10.3 bar). The adjustable field range temperature is 60 to 120 degrees F (16 to 49 degrees C).

Attributes

Flow Rate: .5 gpm
Temperature Rating: 200 deg F
Body Material: Copper Silicon Alloy
Dimensions: 5-7/8 in W x 5-7/8 in H
End Style: PEX
Media: Water
Nominal Size: 1 in
Pressure Rating: 150 psi
Series: LF1170
Softgoods Material: EPDM O-Ring
Trim Material: Stainless Steel

Features

  • Integral filter washers and check valves
  • Adjustment cap with locking feature
  • 3-5/8 in top to inlet
  • Polysulfone piston
  • Lead free brass construction
  • Thermal actuation technology for precise temperature control
