RED-WHITE 002-51066 1-1/4 EZPRESS SWING CHECK VLV 250EZ
MFR Part #: 250-1-1/4
SKU #: 1040137
Brand: RWV®
UPC: 670779250076

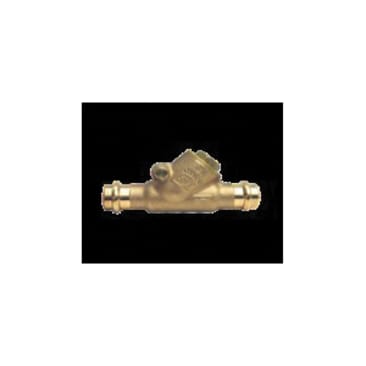

RWV® 250 250-1-1/4 Y-Pattern Swing Check Valve, 1-1/4 in Nominal, 200 psi, Brass Body, Contains Lead
MSS-SP-80 | NSF Certified
Product Details
Attributes
Features
Resources
RWV® Y-Pattern Swing Check Valve, Model: 250, 1-1/4 in Nominal, 200 psi, Gas, Oil, Water Media, 6.9 in Inlet to Outlet Length, 2.6 in Top to Inlet Center, 36 Cv Flow Coefficient (Cv), Material Standard: ASTM B62-C83600, Brass Body, EPDM Seal, Brass Disc, Contains Lead
Body Material:Brass
Disc Material:Brass
Flow Coefficient (Cv):36 Cv
Inlet to Outlet Length:6.9 in
Lead-Free/Contains Lead:Contains Lead
Material Standard:ASTM B62-C83600
Media:Gas, Oil, Water
Nominal Size:1-1/4 in
Pressure Rating:200 psi
Seal Material:EPDM
Top to Inlet Center:2.6 in
- Brass hinge pin, hinge plug and cap
Product Details
RWV® Y-Pattern Swing Check Valve, Model: 250, 1-1/4 in Nominal, 200 psi, Gas, Oil, Water Media, 6.9 in Inlet to Outlet Length, 2.6 in Top to Inlet Center, 36 Cv Flow Coefficient (Cv), Material Standard: ASTM B62-C83600, Brass Body, EPDM Seal, Brass Disc, Contains Lead
Attributes
Body Material: Brass
Disc Material: Brass
Flow Coefficient (Cv): 36 Cv
Inlet to Outlet Length: 6.9 in
Lead-Free/Contains Lead: Contains Lead
Material Standard: ASTM B62-C83600
Media: Gas, Oil, Water
Nominal Size: 1-1/4 in
Pressure Rating: 200 psi
Seal Material: EPDM
Top to Inlet Center: 2.6 in
Features
- Brass hinge pin, hinge plug and cap
