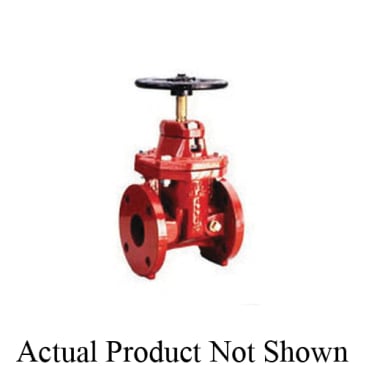

ZURN 3-48 3IN NRS GATE VALVE
MFR Part #: 3-48
SKU #: 1295970
Brand: Zurn®
UPC: 8481800021
Zurn® Wilkins 3-48 Model 48 Non-Rising Stem Resilient Wedge Gate Valve, 3 in Nominal, Flanged End Style, Ductile Iron Body, Handwheel Actuator
Potable Water Lines, Irrigation Systems and Waterworks Connections
ANSI/ASME B16.1|ASTM A536 65-45-12|AWWA C515/C550|FM Approved|cUL/UL Listed|ANSI/NSF 372
Product Details
Attributes
Features
Resources
Zurn® Wilkins Resilient Wedge Gate Valve, Non-Rising Stem, Series: Model 48, 3 in Nominal, Flanged End Style, 250 psi Pressure, 140 deg F, Media: Water, Handwheel Actuator, 8 in Inlet to Outlet Length, 12-3/4 in Top to Inlet Center, Ductile Iron Body, Bronze Stem Trim, 10-1/4 in Diameter Hand Wheel, Fusion Bond Epoxy Coated
Body Material:Ductile Iron
Nominal Size:3 in
Pressure Rating:250 psi
Actuator Type:Handwheel
End Style:Flanged
Finish:Fusion Bond Epoxy Coated
Hand Wheel Diameter:10-1/4 in
Inlet to Outlet Length:8 in
Media:Water
Series:Model 48
Temperature Rating:140 deg F
Top to Inlet Center:12-3/4 in
Trim Material:Bronze Stem
Type:Non-Rising Stem
- Use stand alone or on Wilkins backflow preventers
- Tapped and plugged
- Full flow waterway
Product Details
Zurn® Wilkins Resilient Wedge Gate Valve, Non-Rising Stem, Series: Model 48, 3 in Nominal, Flanged End Style, 250 psi Pressure, 140 deg F, Media: Water, Handwheel Actuator, 8 in Inlet to Outlet Length, 12-3/4 in Top to Inlet Center, Ductile Iron Body, Bronze Stem Trim, 10-1/4 in Diameter Hand Wheel, Fusion Bond Epoxy Coated
Attributes
Body Material: Ductile Iron
Nominal Size: 3 in
Pressure Rating: 250 psi
Actuator Type: Handwheel
End Style: Flanged
Finish: Fusion Bond Epoxy Coated
Hand Wheel Diameter: 10-1/4 in
Inlet to Outlet Length: 8 in
Media: Water
Series: Model 48
Temperature Rating: 140 deg F
Top to Inlet Center: 12-3/4 in
Trim Material: Bronze Stem
Type: Non-Rising Stem
Features
- Use stand alone or on Wilkins backflow preventers
- Tapped and plugged
- Full flow waterway
