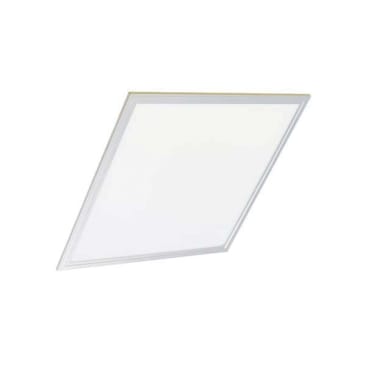

RAB 072235 Image 1
RAB 072235 Image 2
content loaded
RAB 072235 Image 1

RAB 072235 CPL22-LED30-B-3.5K-DIM 2 X 2 FLAT PANEL 120-277V

MFR Part #: 072235
SKU #: 1224338
Brand: RAB® Design Lighting
UPC: 61184722355
RAB® 072235 CPL22-LED30 Standard Indoor Ceiling Panel Fixture, 120 to 277 V
5 years
Offices, Schools, Retail and Commercial Spaces Applications
cULus Listed | DLC Premium Listed

RAB® Indoor Ceiling Panel Fixture, Standard, Series: CPL22-LED30, 120 to 277 V, LED Lighting Technology, 30 W Lamp, 125 Lumens/W Light Output, 3500 K Color Temperature, 82.8 CRI, 0 to 10 VDC Dimming Ballast, Acrylic/PMMA Lens, 3750 Lumens, IP20 Enclosure, T-Bar Ceiling Mounting, Aluminum Housing Material, 2 ft L x 2 ft W x 1.61 in H Dimensions

The CPL-LED fixture is a backlit LED ceiling panel that provides uniform distribution, superior performance and reduced glare. The fixture is ideal for offices, schools, retail and commercial spaces.

Product Details

RAB® Indoor Ceiling Panel Fixture, Standard, Series: CPL22-LED30, 120 to 277 V, LED Lighting Technology, 30 W Lamp, 125 Lumens/W Light Output, 3500 K Color Temperature, 82.8 CRI, 0 to 10 VDC Dimming Ballast, Acrylic/PMMA Lens, 3750 Lumens, IP20 Enclosure, T-Bar Ceiling Mounting, Aluminum Housing Material, 2 ft L x 2 ft W x 1.61 in H Dimensions

The CPL-LED fixture is a backlit LED ceiling panel that provides uniform distribution, superior performance and reduced glare. The fixture is ideal for offices, schools, retail and commercial spaces.

Attributes

Ballast Type: 0 to 10 VDC Dimming
Color Rendering Index (CRI): 82.8
Color Temperature: 3500 K
Dimensions: 2 ft L x 2 ft W x 1.61 in H
Enclosure Type: IP20
Housing Material: Aluminum
Lamp Wattage: 30 W
Lens Type: Acrylic/PMMA
Light Output: 125 Lumens/W
Lighting Technology: LED
Lumens: 3750 Lumens
Mounting Type: T-Bar Ceiling
Series: CPL22-LED30
Type: Standard
Voltage Rating: 120 to 277 V

Features

  • Backlit ceiling panels with aluminum frame and PMMA lens

Resources

Specification Sheet
