LW PRFL WLPK LED 40 W LED LITHONIA OLWX1 LED 40W 40K M4
MFR Part #: OLWX1 LED 40W 40K M4
SKU #: 1224561
Brand: Acuity Brands | Lithonia Lighting®
UPC: 888791000696

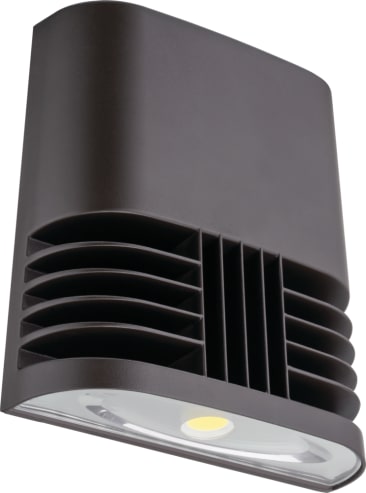

Lithonia Lighting® OLWX1 LED 40W 40K M4 Low Profile Outdoor Wallpack, LED Lamp, 120 to 277 VAC, Dark Bronze Housing
1 Year Limited
For outdoor applications such as building perimeters, loading areas, driveways and sign and building flood lighting, education, hospitality, offices and banks
UL/cUL Listed
Product Details
Attributes
Features
Resources
Lithonia Lighting® Outdoor Wallpack, Low Profile, Series: OLWX1, 120 to 277 VAC, LED Lamp, 40 W Lamp, 100000 hr Average Life, 4000 K Color, Electronic Ballast, Glass Lens, 4027 Lumens, IP65, Flush Mount, Aluminum Housing, Dark Bronze Housing, 8 in H x 7-1/2 in W x 3 in D
Color Temperature:4000 K
Lumens:4027 Lumens
Mounting Type:Flush
Average Life:100000 hr
Ballast Type:Electronic
Dimensions:8 in H x 7-1/2 in W x 3 in D
Enclosure Type:IP65
Housing Finish:Dark Bronze
Housing Material:Aluminum
Lamp Type:LED
Lamp Wattage:40 W
Lens Type:Glass
Series:OLWX1
Type:Low Profile
Voltage Rating:120 to 277 V AC
- The versatility of the OLWX1 LED combines a sleek, low profile wall pack design and high output LEDs to provide an energy efficient, low maintenance LED wall pack suitable for replacing up to 250 W metal halide fixtures
- Rugged cast aluminum housing with textured dark bronze polyester powder paint for lasting durability
- Integral heat sinks optimize thermal management through conductive and convective cooling
- LEDs are protected behind a glass lens, housing is sealed against moisture and environmental contaminants
- High performance LEDs behind clear glass for maximum light output
- Light engine consists of one high efficiency chip on-board (COB) LED with integrated circuit board mounted directly to the housing to maximize heat dissipation and promote long life
- Electronic driver has a power factor of >90% and total harmonic distortion <20% and a minimum 2.5 kVAC surge rating
- Easily mounts to recessed junction boxes with the included wall mount bracket or for surface mounting and conduit entry with the included junction box with five 1/2 in threaded conduit entry hubs
- Photocell can be disabled by rotating the photocell cover
- Precision molded acrylic lenses provide optimal luminaire spacing with type 3 distribution
- Nighttime Friendly™ full cutoff above 90 deg angle, standard
- All mounting hardware included
