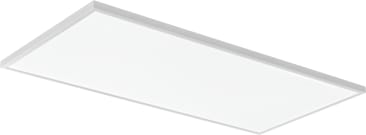

LITHONIA CPANL 2X4 40/50/60LM 35K M2 Image 1
LITHONIA CPANL 2X4 40/50/60LM 35K M2 Image 2
content loaded
LITHONIA CPANL 2X4 40/50/60LM 35K M2 Image 1

LITHONIA 250CSL CPANL 2X4 CPANL 2X4 40/50/60LM 35K M2

MFR Part #: CPANL 2X4 40/50/60LM 35K M2
SKU #: 1224480
Brand: Acuity Brands | Lithonia Lighting®
UPC: 191848338001
Lithonia Lighting® CPANL 2X4 40/50/60LM 35K M2 CPANL™ Switchable Lumen Flat Panel, (4) Static LED Lamp, 32/42/52 W Fixture, 120 to 277 V, Aluminum Housing
5 years Limited
Offices, Banks, Schools, Retail, Convenience Stores, Hospitals, Healthcare Facilities and Other Commercial Space Applications
DLC Listed | CSA Certified for Damp Location | IC Certified

Lithonia Lighting® Flat Panel, Switchable Lumen, Series: CPANL™, 120 to 277 V, 32/42/52 W Fixture, Static LED Lamp, 4 Lamps, 125/119/115 Lumens/W Light Output, 60000 hr Average Life, 3500 K Color Temperature, >80 CRI, 0 to 10 V Dimming Driver Ballast, Acrylic/Polycarbonate Lens, 4000/5000/6000 Lumens, Ceiling/Surface Mounting, Aluminum Housing Material, 4 ft L x 2 ft W x 1.26 in D Dimensions

The CPANL™ LED switchable Lumen flat panel features an integrated driver, with a rigid, deep drawn backplate that allows CPANL™ to be suspended or mounted directly to a surface. Its unique, switchable Lumen feature adds to the panel's flexibility by allowing you to choose between three lumen outputs with a simple switch. CPANL™ is ideal for applications such as schools, commercial office, retail and healthcare spaces.

Product Details

Lithonia Lighting® Flat Panel, Switchable Lumen, Series: CPANL™, 120 to 277 V, 32/42/52 W Fixture, Static LED Lamp, 4 Lamps, 125/119/115 Lumens/W Light Output, 60000 hr Average Life, 3500 K Color Temperature, >80 CRI, 0 to 10 V Dimming Driver Ballast, Acrylic/Polycarbonate Lens, 4000/5000/6000 Lumens, Ceiling/Surface Mounting, Aluminum Housing Material, 4 ft L x 2 ft W x 1.26 in D Dimensions

The CPANL™ LED switchable Lumen flat panel features an integrated driver, with a rigid, deep drawn backplate that allows CPANL™ to be suspended or mounted directly to a surface. Its unique, switchable Lumen feature adds to the panel's flexibility by allowing you to choose between three lumen outputs with a simple switch. CPANL™ is ideal for applications such as schools, commercial office, retail and healthcare spaces.

Attributes

Color Temperature: 3500 K
Lumens: 4000/5000/6000 Lumens
Average Life: 60000 hr
Ballast Type: 0 to 10 V Dimming Driver
Color Rendering Index (CRI): >80
Housing Material: Aluminum
Lamp Type: Static LED
Mounting Type: Ceiling/Surface
Number of Lamps: 4
Voltage Rating: 120 to 277 V

Features

  • The CPANL™ Series LED switchable lumen flat panel features an internal driver and deep drawn backplate
  • This reliable and rigid flat panel is visually comfortable and can be recessed, suspended, direct or surface box mounted
  • Built to last with an aluminum frame for strength and durability, the seamless frame prevents light leak in the corners
  • The satin white lens provides excellent shielding and fully luminous appearance
  • CPANL's low-profile design provides increased installation flexibility especially in restricted plenum spaces
  • The backplate includes integral T-bar clips for installation into T-grid ceilings
  • Long life LEDs, coupled with a high efficiency driver, provide superior illumination for extended service life

Resources

Instruction/Installation Manual
Specification Sheet
