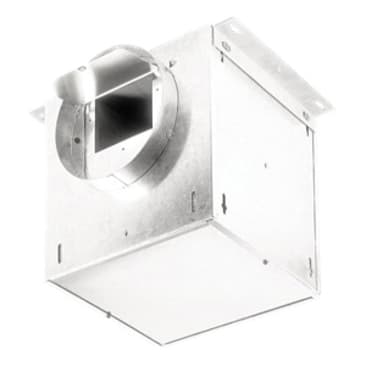

BROAN L200L LO-SONE IN-LINE VENTILATOR 200CFM
MFR Part #: L200L
SKU #: 1150389
Brand: BROAN
UPC: 026715124619
NuTone® L200L Straight Through Ventilation Fan, 196 cfm, 8 in Dia Duct, 127 W, 120 V AC, 1.8 A, Domestic
1 Year
For conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation
UL/cUL Listed
Product Details
Attributes
Features
Resources
NuTone® Ventilation Fan, Straight Through, 196 cfm, 8 in Duct Dia, 120 V AC, 1.8 A, 60 Hz, 127 W, Polymer Grille, 12-1/4 in Housing Length, 12-1/4 in Housing Width, 11-3/4 in Housing Height, Galvanized Steel Housing, Ceiling Mount, No, Domestic
Amperage Rating:1.8 A
Domestic/Import:Domestic
Duct Diameter:8 in
Enclosure Type:Open
Flow Rate:196 cfm
Frequency Rating:60 Hz
Grille Material:Polymer
Housing Color:White
Housing Finish:Galvanized
Housing Height:11-3/4 in
Housing Length:12-1/4 in
Housing Material:Galvanized Steel, Steel
Housing Width:12-1/4 in
Humidity Sensing:No
Insulation Class:B
Mounting Type:Ceiling
Overall Height:11-3/4 in
Overall Length:12-1/4 in
Overall Width:12-1/4 in
Phase:1 ph
Power Rating:127 W
Temperature Rating:104 deg F
Type:Straight Through
Voltage Rating:120 V AC
- High capacity fans are an exceptionally quiet solution to continuous ventilation
- Removable panel allows for easy motor access without disturbing ductwork
- Low rpm for quiet operation blower
- Resilient anti-vibration mounts blower
- Dynamically balanced, polymeric, centrifugal blower wheel for quiet, efficient performance
- Permanently lubricated, thermally protected motor designed for continuous operation
- Rugged galvanized steel housing
- Ventilator shall have galvanized steel housing
- 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements
- Automatic backdraft damper located within duct connector
- Factory shipped in horizontal discharge position easily converted to vertical discharge
- Housing to have adjustable mounting brackets and removable panel to allow motor access without disturbing ductwork
- Automatic backdraft damper to be located within duct connector duct connector blower assembly and wiring plate shall be adjustable for either horizontal or vertical installation
- Blower unit shall be removable from housing and will have a polymeric, dynamically balanced centrifugal type blower wheel
- Motor to be permanently lubricated and mounted with resilient anti-vibration mounts
- Can be ducted horizontally or vertically with in-line ducting available with separate adapter
- Use Broan® electronic variable speed control to adjust blower speed and sound level (available separately)
- 196 cfm at 0.1 in/195 cfm at 1/8 in/190 cfm at 1/4 in flow rate
- 1.9 rated Sones vertical, 1.6 Sones sound
- No nightlight
